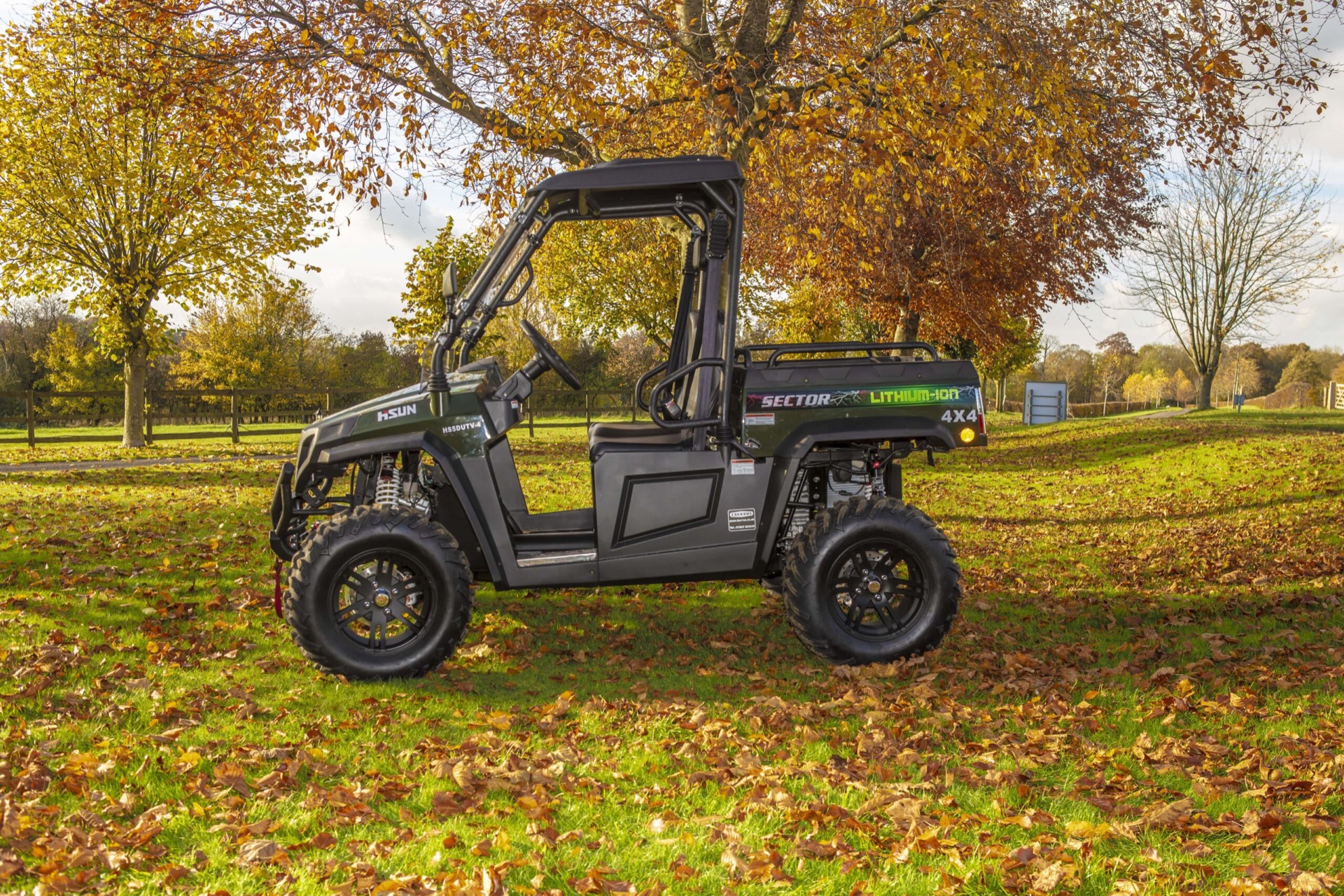

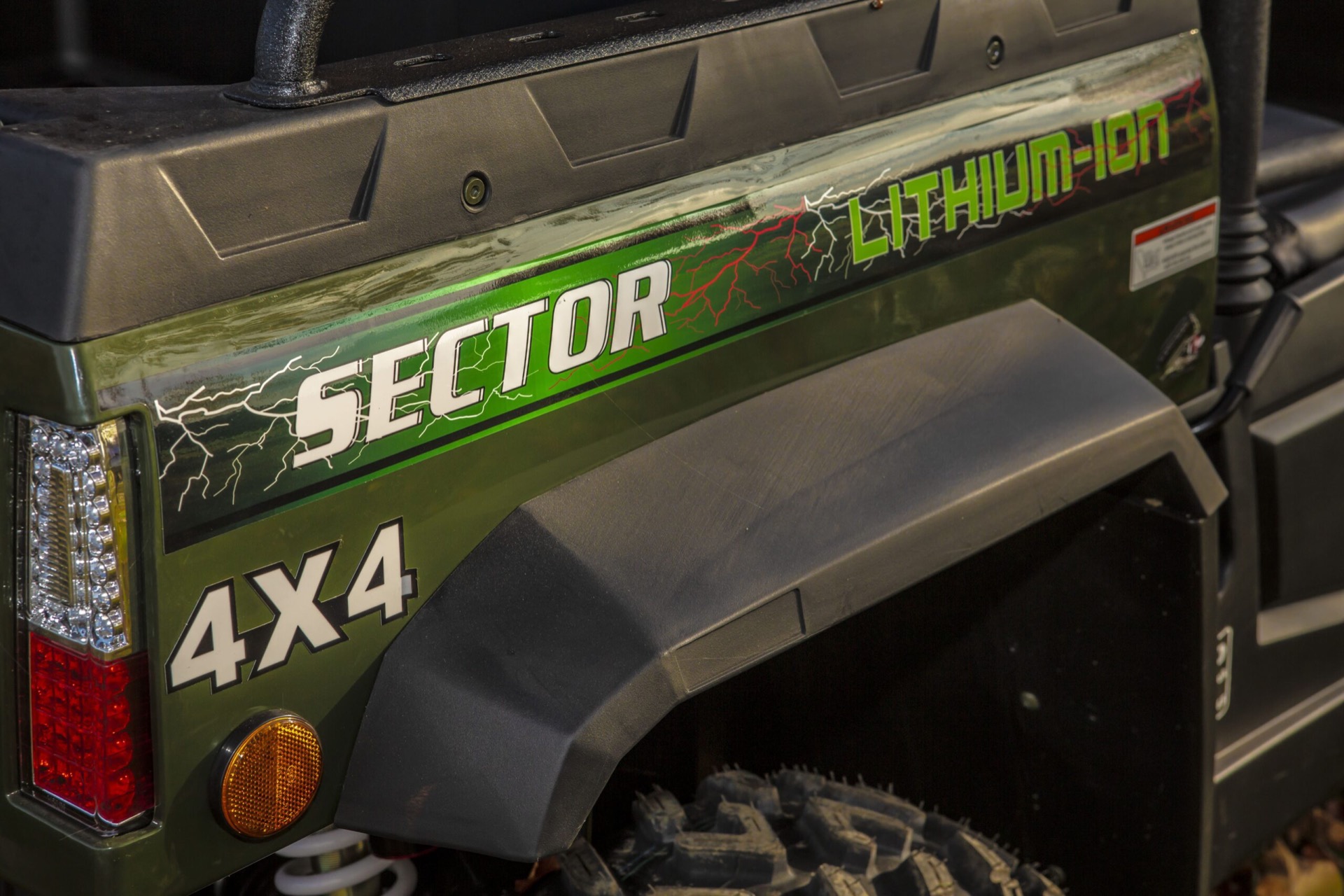

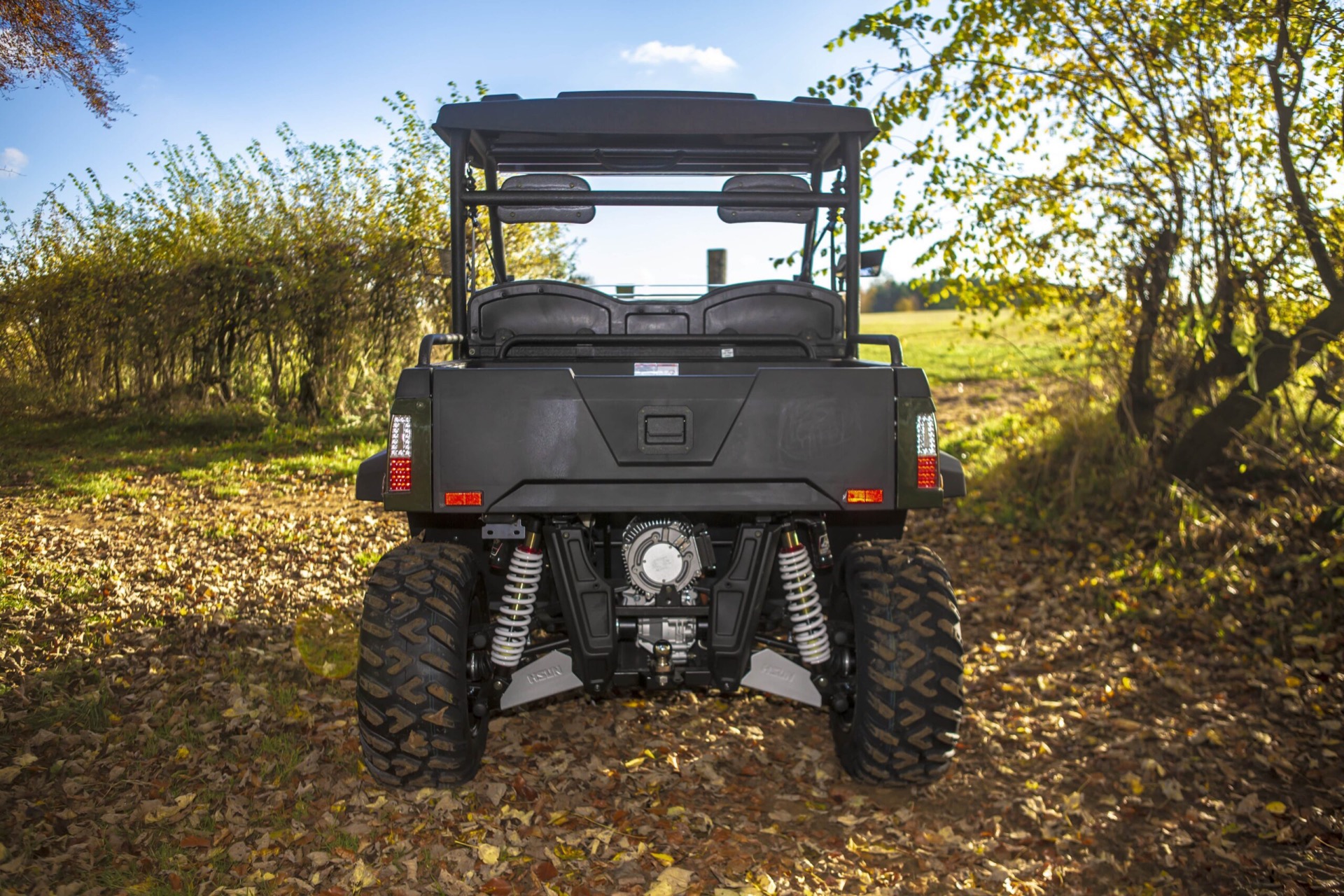

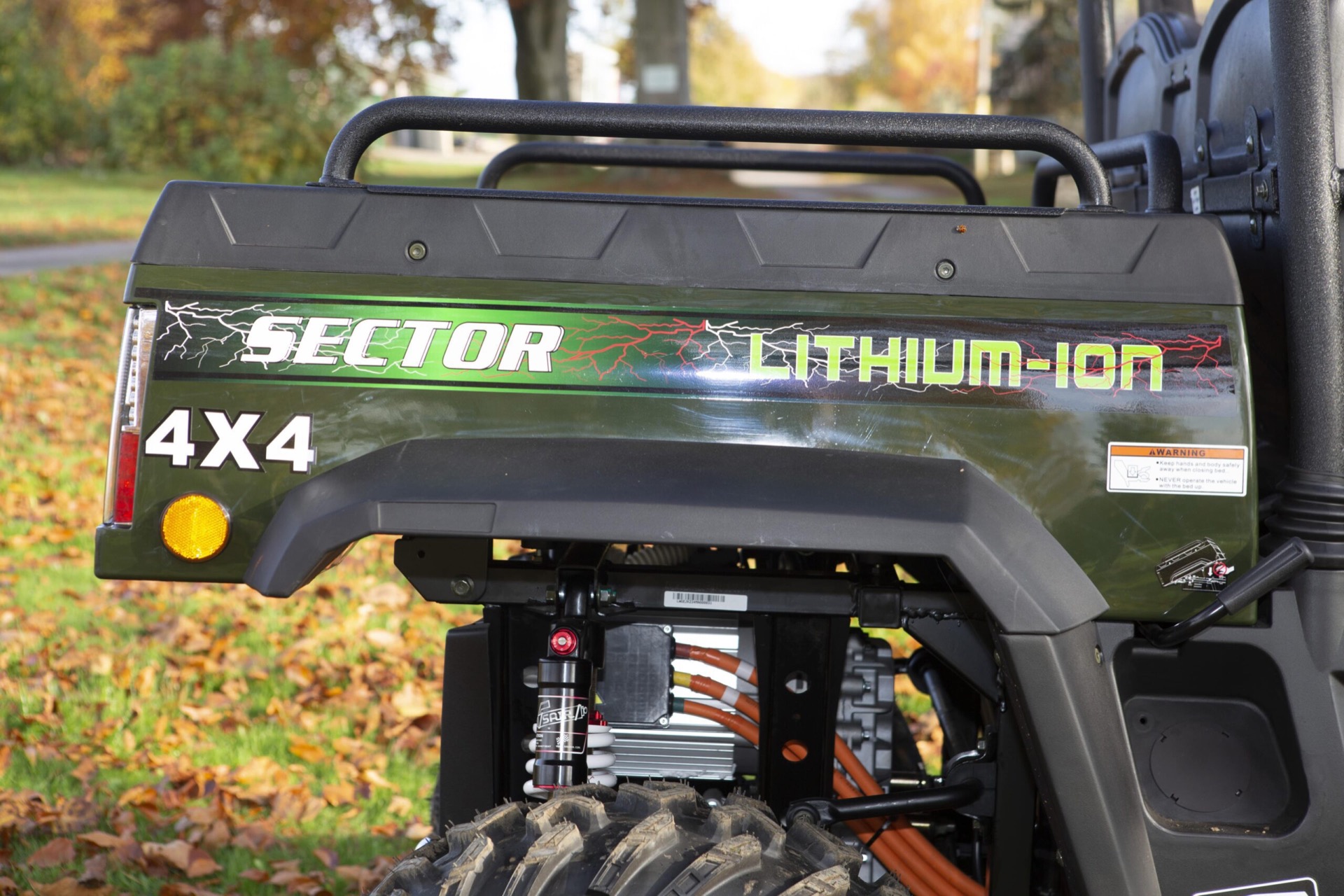

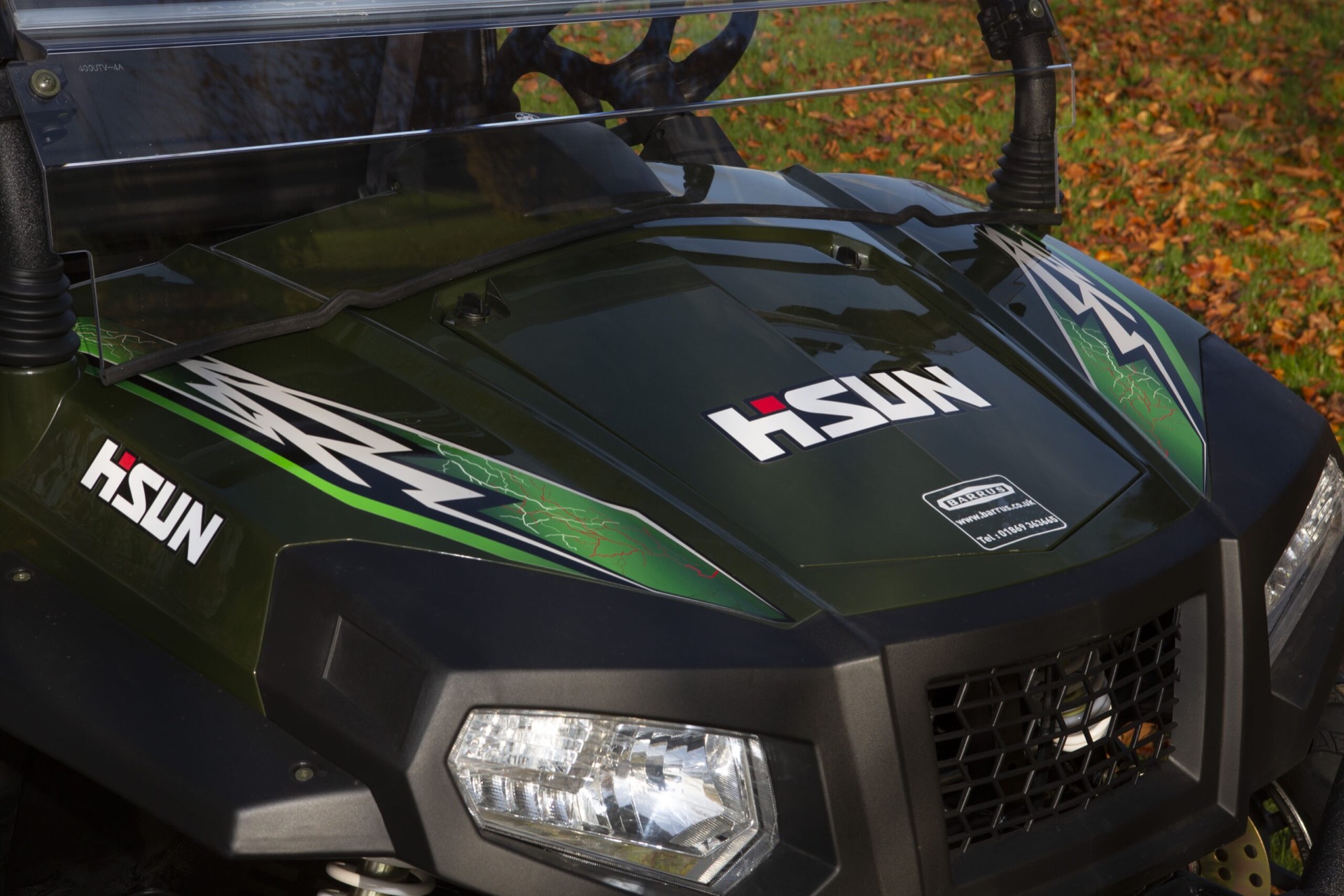

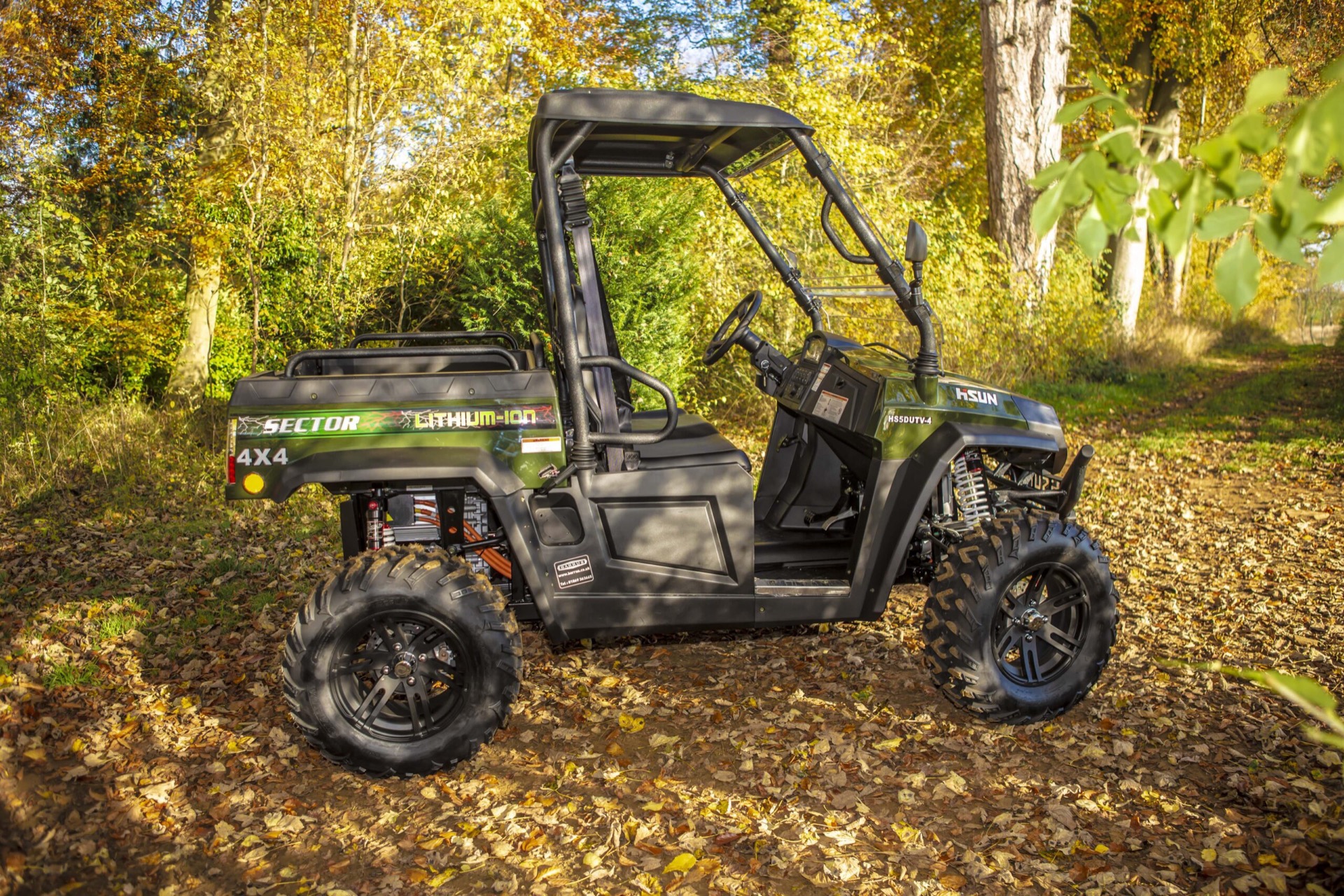

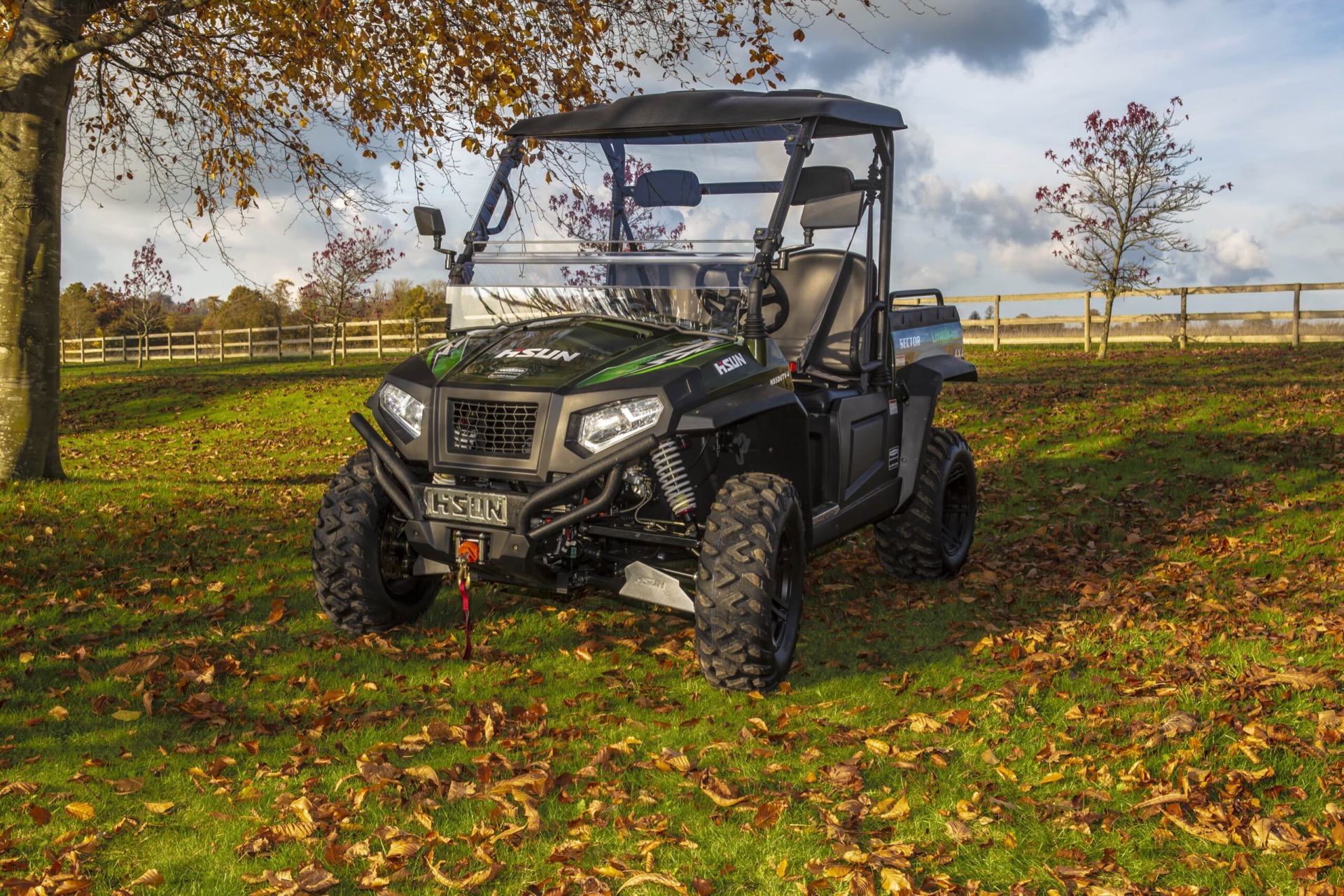

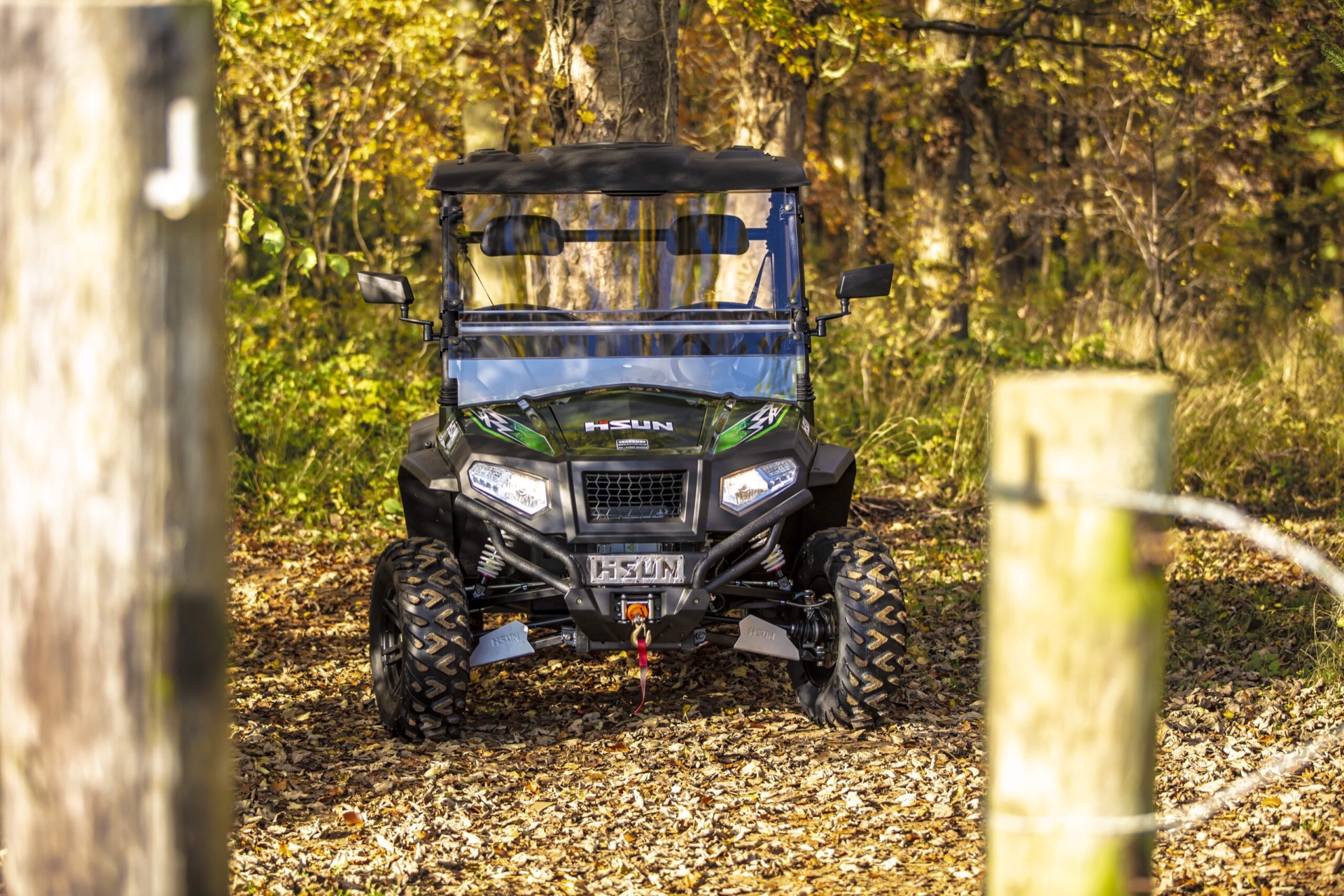

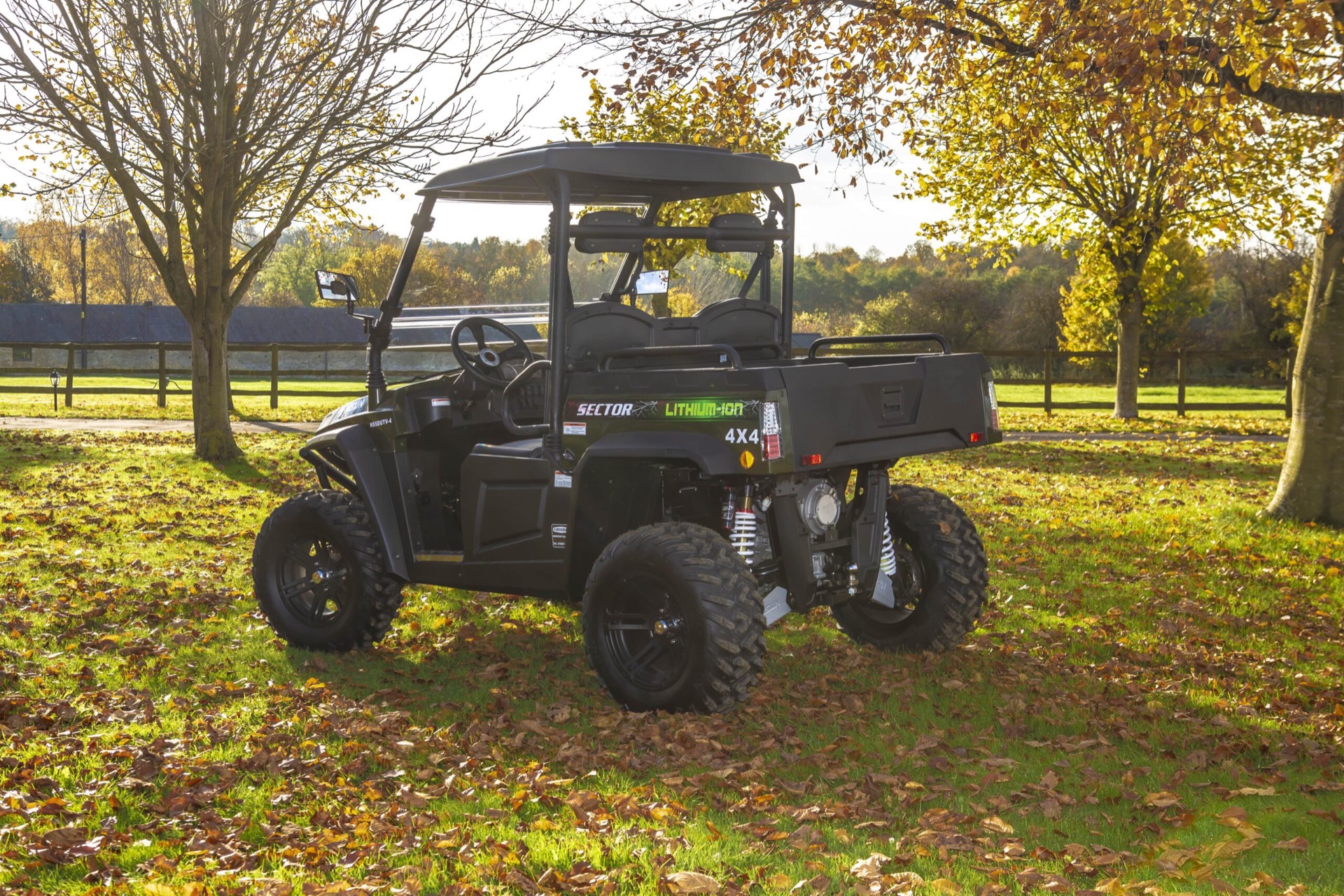

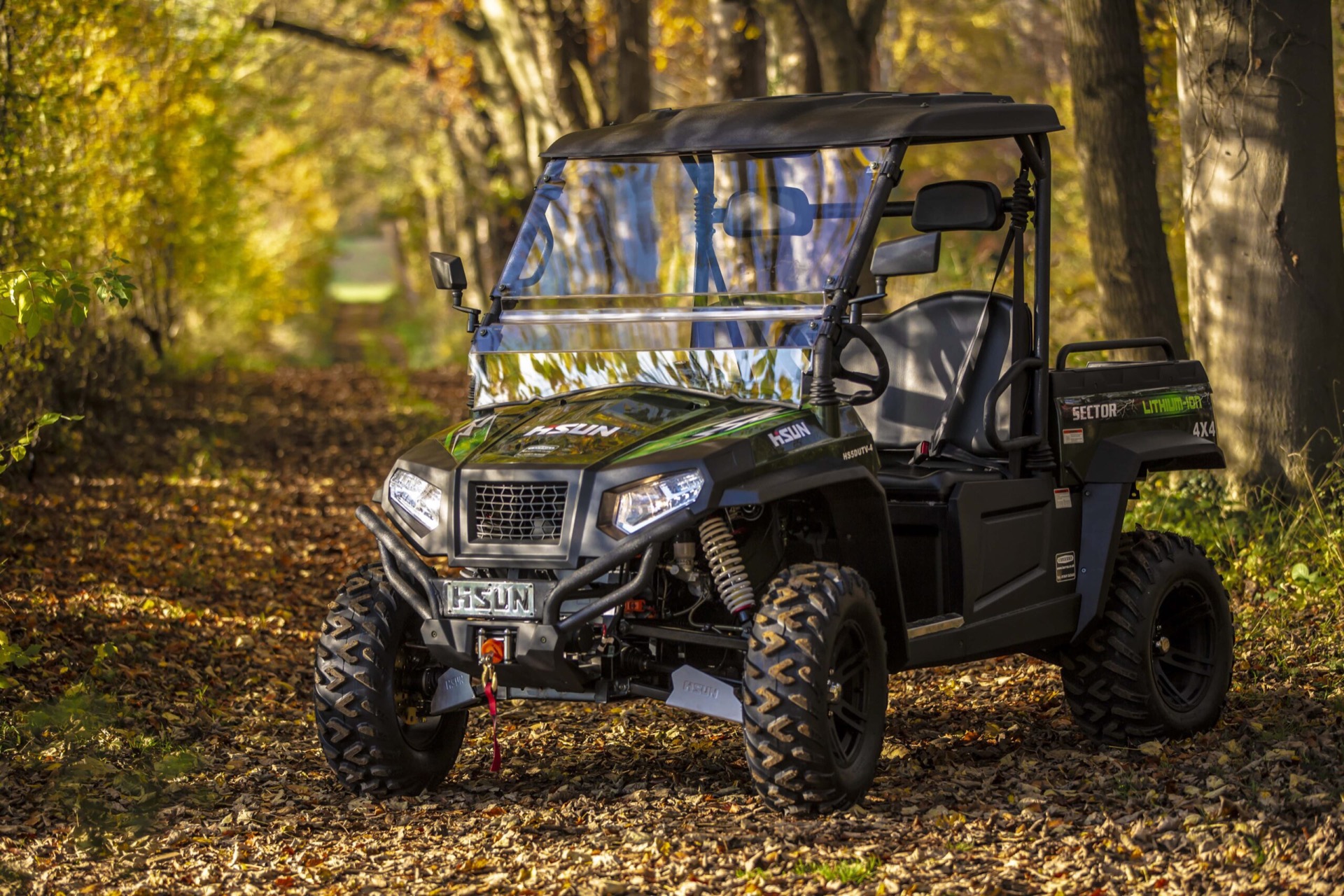

The HiSun 5 kW Electric UTV is a compact yet powerful lithium-ion powered model, providing the necessary power and torque to conquer slopes with inclines of over 30 degrees.

With the extended run times offered by lithium-ion batteries, the HiSun Sector 5kW is a dependable worker that covers distances of up to 44 miles on a single charge. This is an electric UTV that can be easily charged up overnight. The UTV itself comes with a two year warranty, however the lithium battery comes with a five year warranty.

Top speed: 30 mph / 45 kph
Run time on a single charge: over 44 miles
72 volt, 19 hp with over 90 ft. lbs of torque
Maintenance-free lithium-ion battery technology

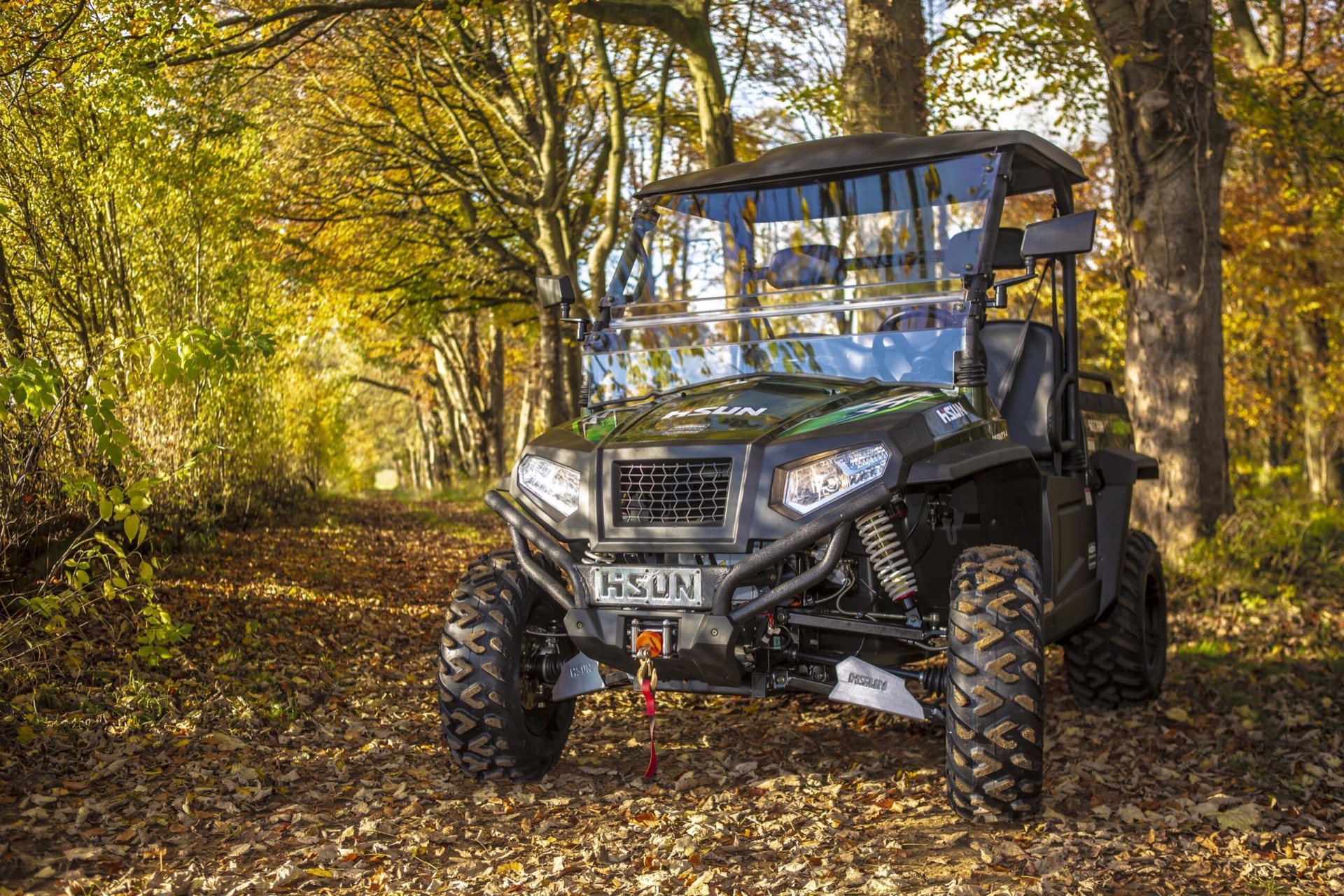

3,500lbs front mounted winch
2WD or 4WD
2-year manufacturer’s warranty

For more information about the HiSun 5kW Electric UTV,
please call us now on 01548 521 429

Options:

Cabin
Windscreen including wash / wiper
Rear panel
Wiper set
Washer set

HiSun 5kW Electric UTV Specifications & Dimensions

Motor
Type	AC Induction motor
Rated power	4 kW @ 6000 rpm
Max. power	14 kW
Max. torque	123 Nm
Battery capacity	12.7 kWh
Charge time	4.5 dependent on depth of charge
Drive Train
Transmission ratio	14.14:1
Drive system	2WD or 4WD
Differential lock	Electric control: switch

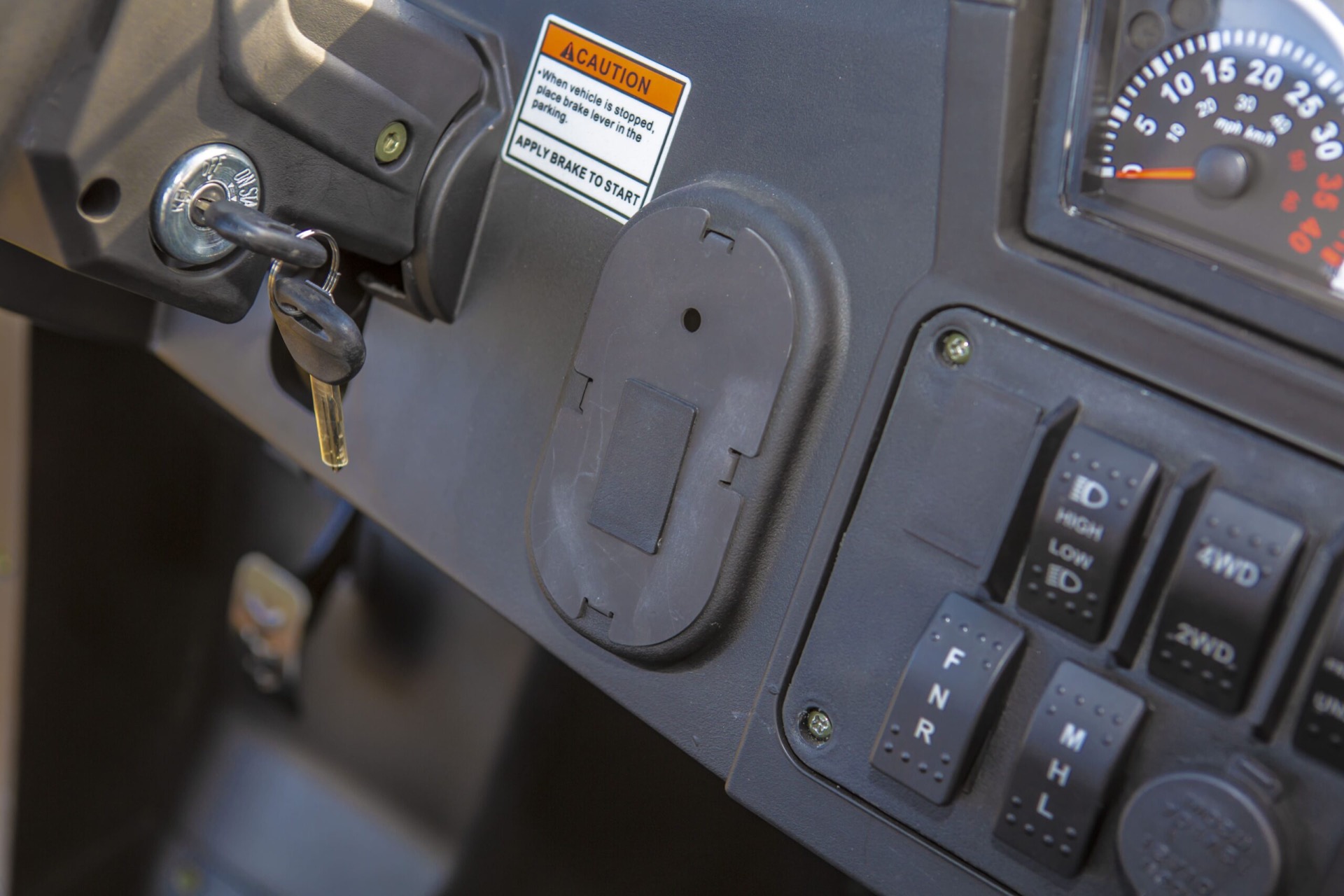

Gear selection	F-N-R with H-M-L
Brakes • Steering • Suspension
Front /rear brakes	Hydraulic disc
Parking brake	Axis brake, pedal-breaking
Steering	Mechanical
Suspension front / rear	Independent, dual A-arm type
Dimensions
Length	2,800 mm
Width	1,615 mm
Height	1,850 mm
Wheelbase	1,850 mm
Ground clearance front/rear	280 mm / 240 mm
Turning diameter	6.84 m

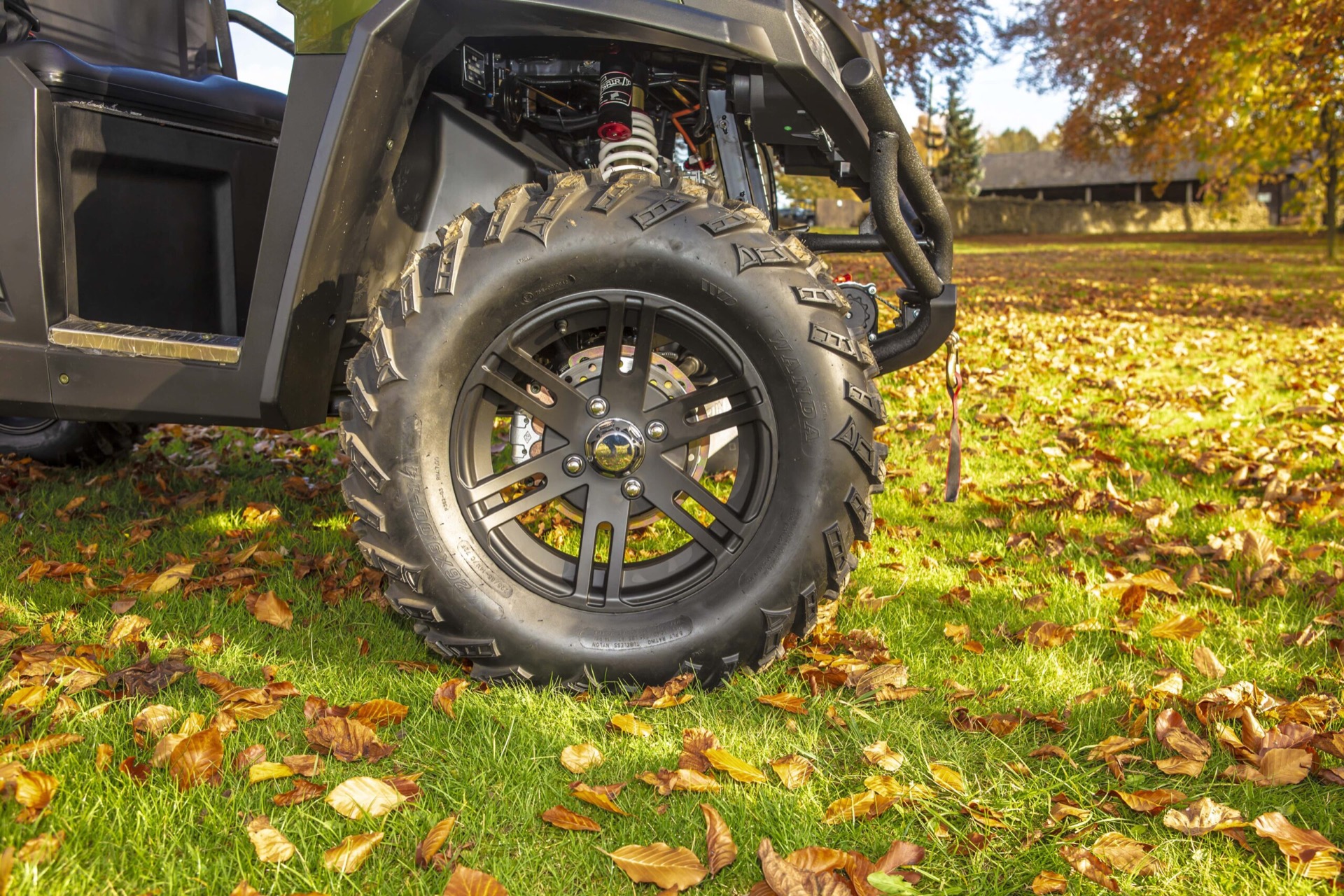

Front tyre	26 x 9-14 6PR
Rear tyre	26 x 11-14 6PR
Weight
Weight	704 kg
Towing capacity	225 kg

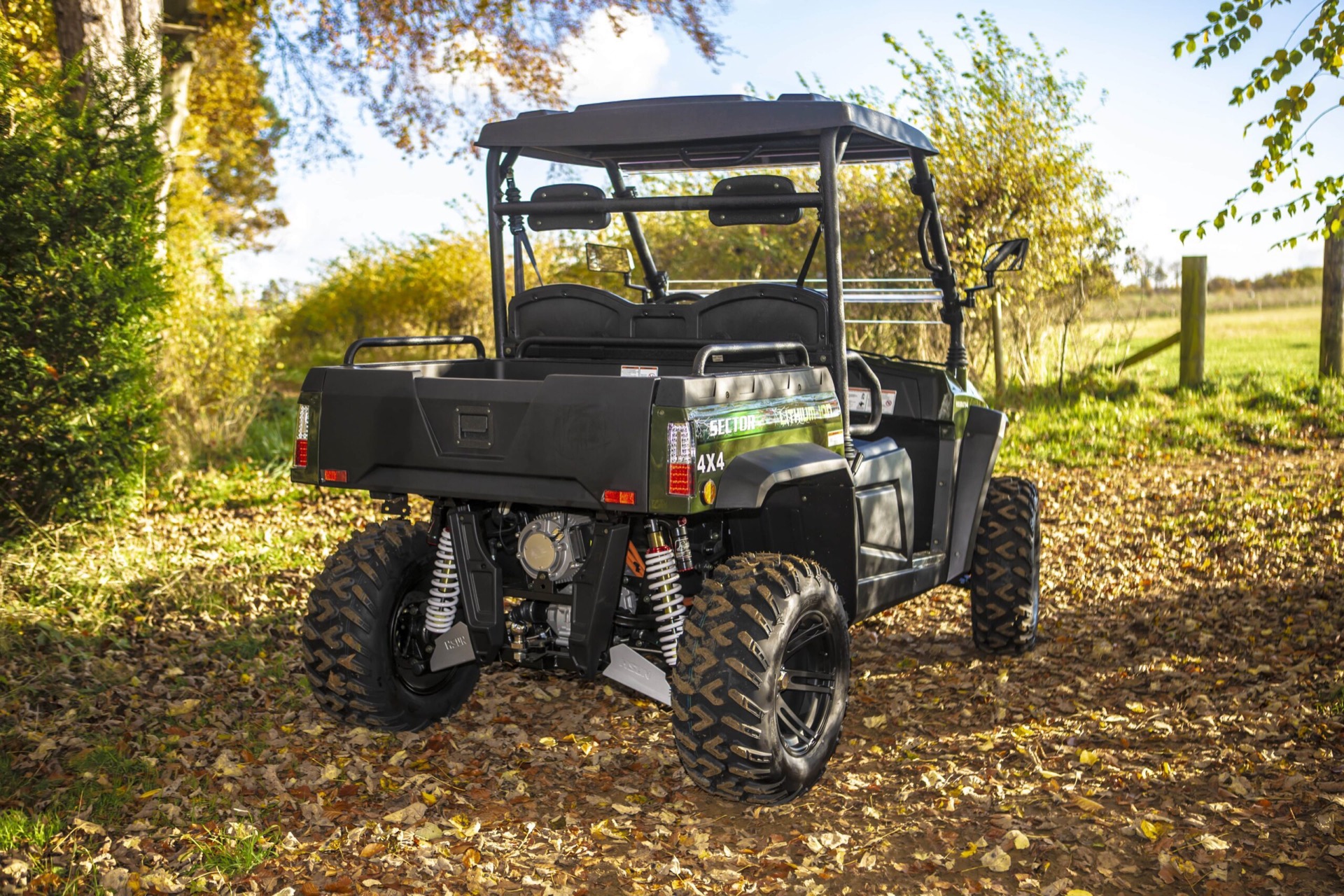

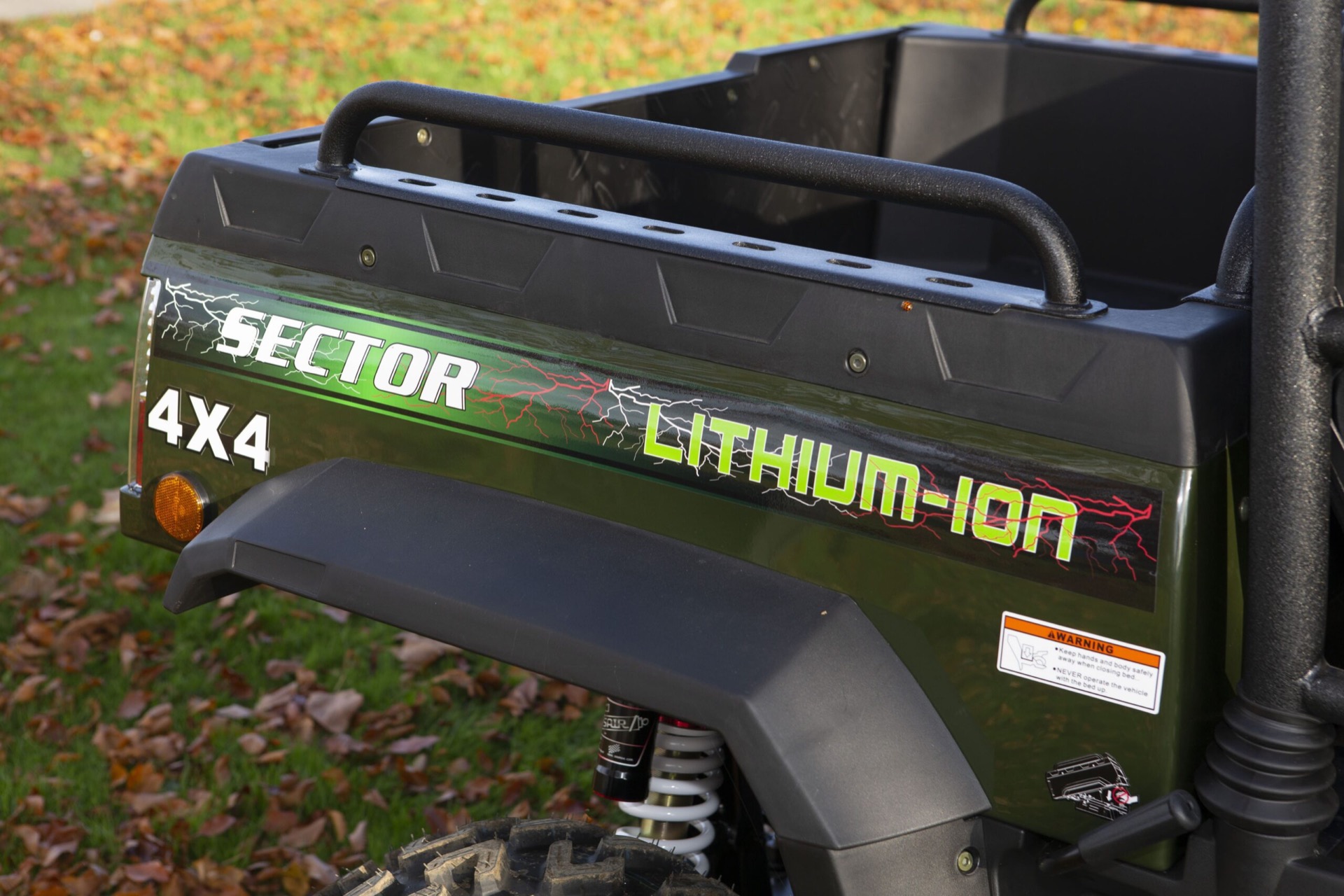

Cargo bed
Width	975 mm
Length	760 mm
Depth	333 mm
Volume	0.23 m³
Capacity	227 kg
