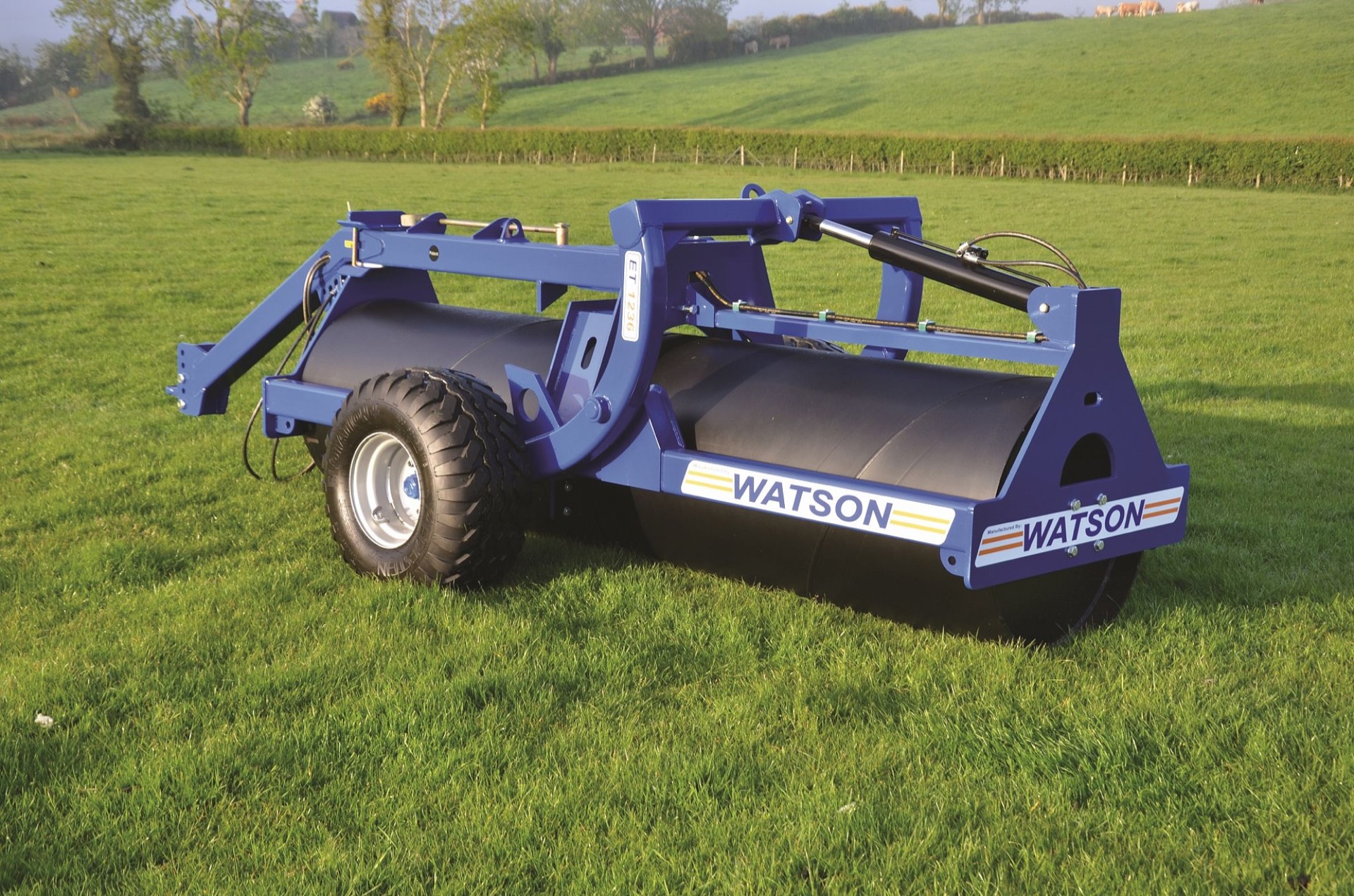

Watson End Tow Roller. Model no. RET 1236.
The Water Ballast Land Roller with End Tow Hydraulic Wheel Kit by Walter Watson is built for effective compaction and easy transport. This roller combines efficient compaction with a convenient end-tow system, making it a versatile choice for different compaction tasks.

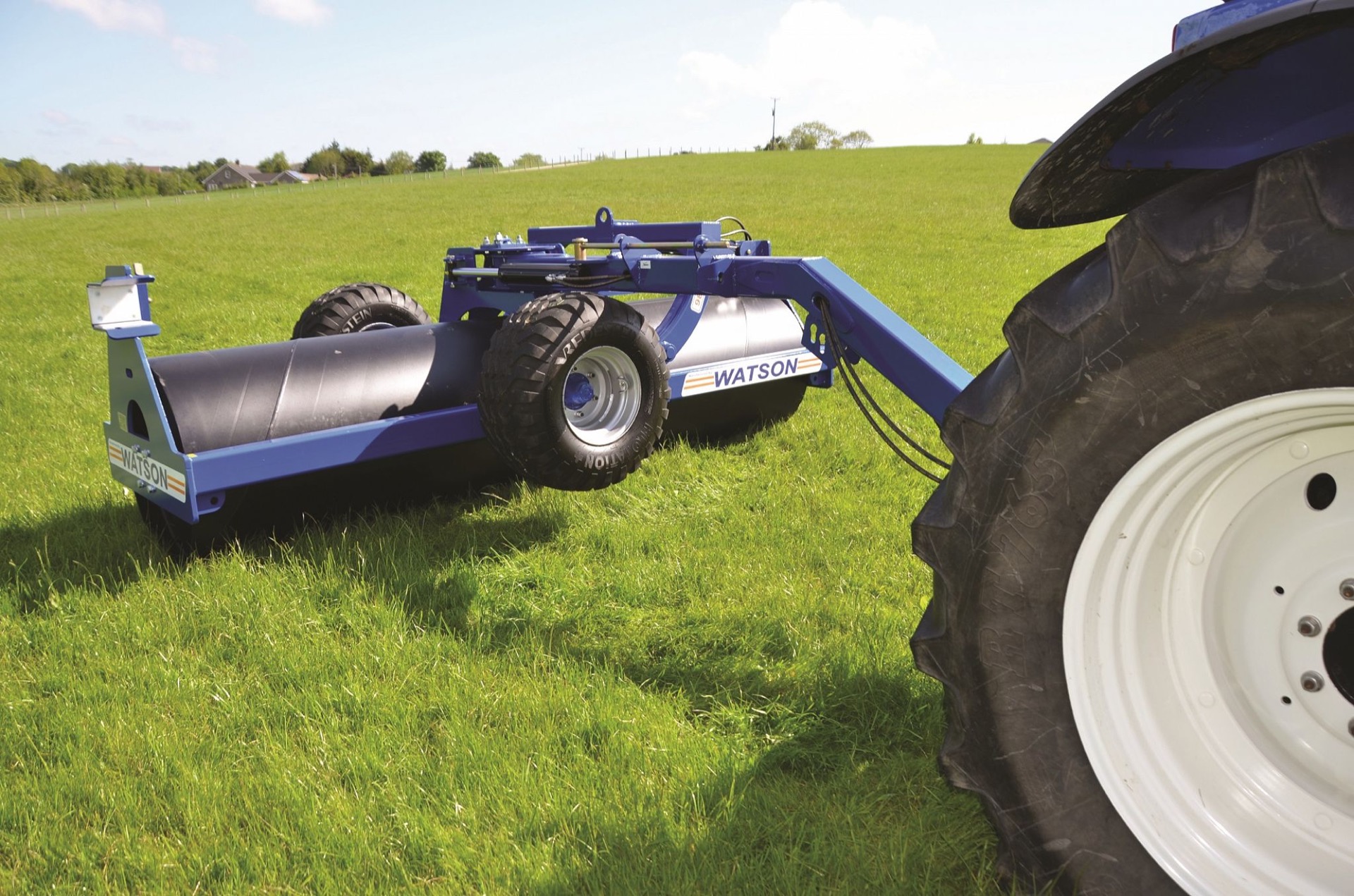

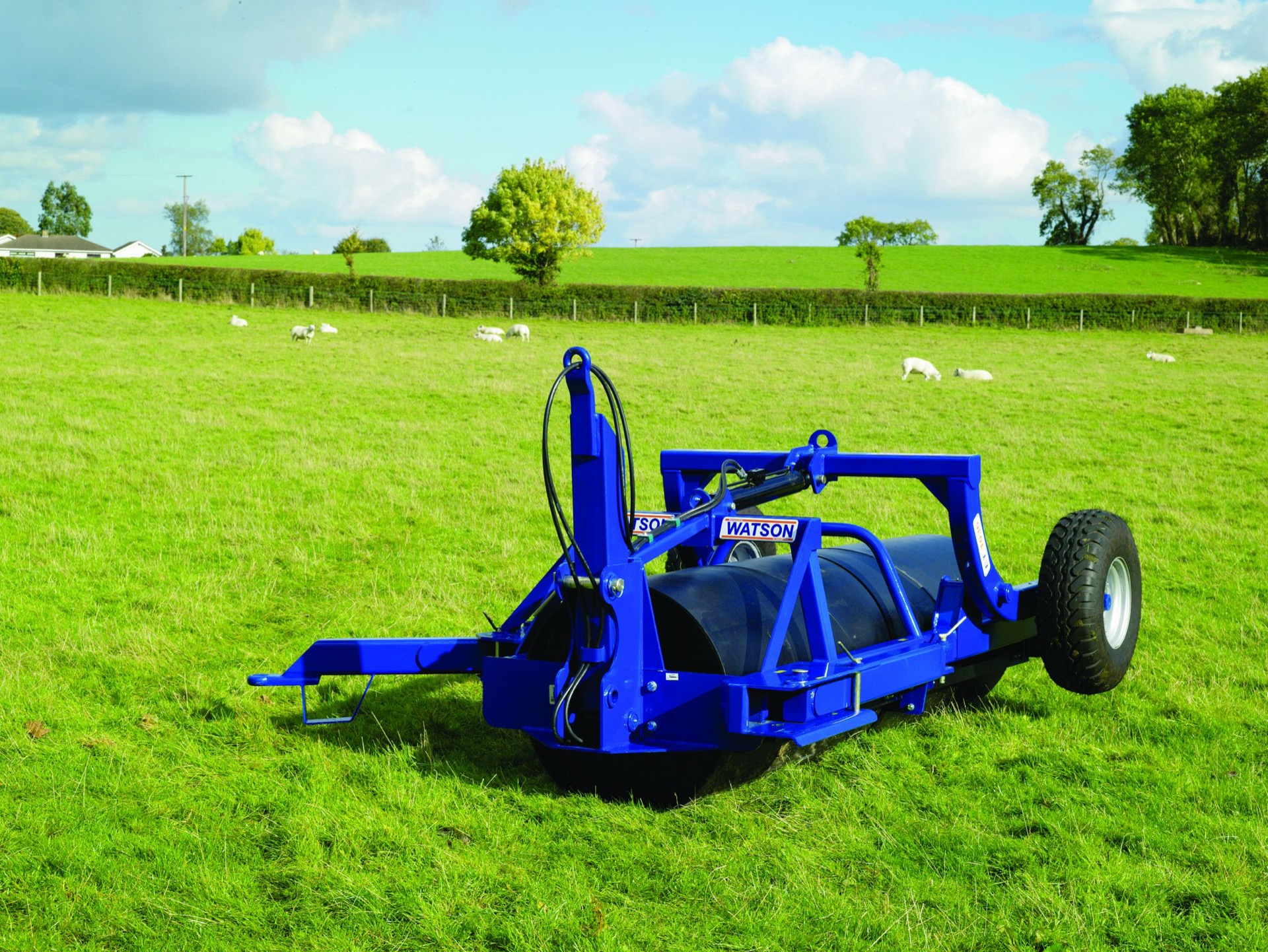

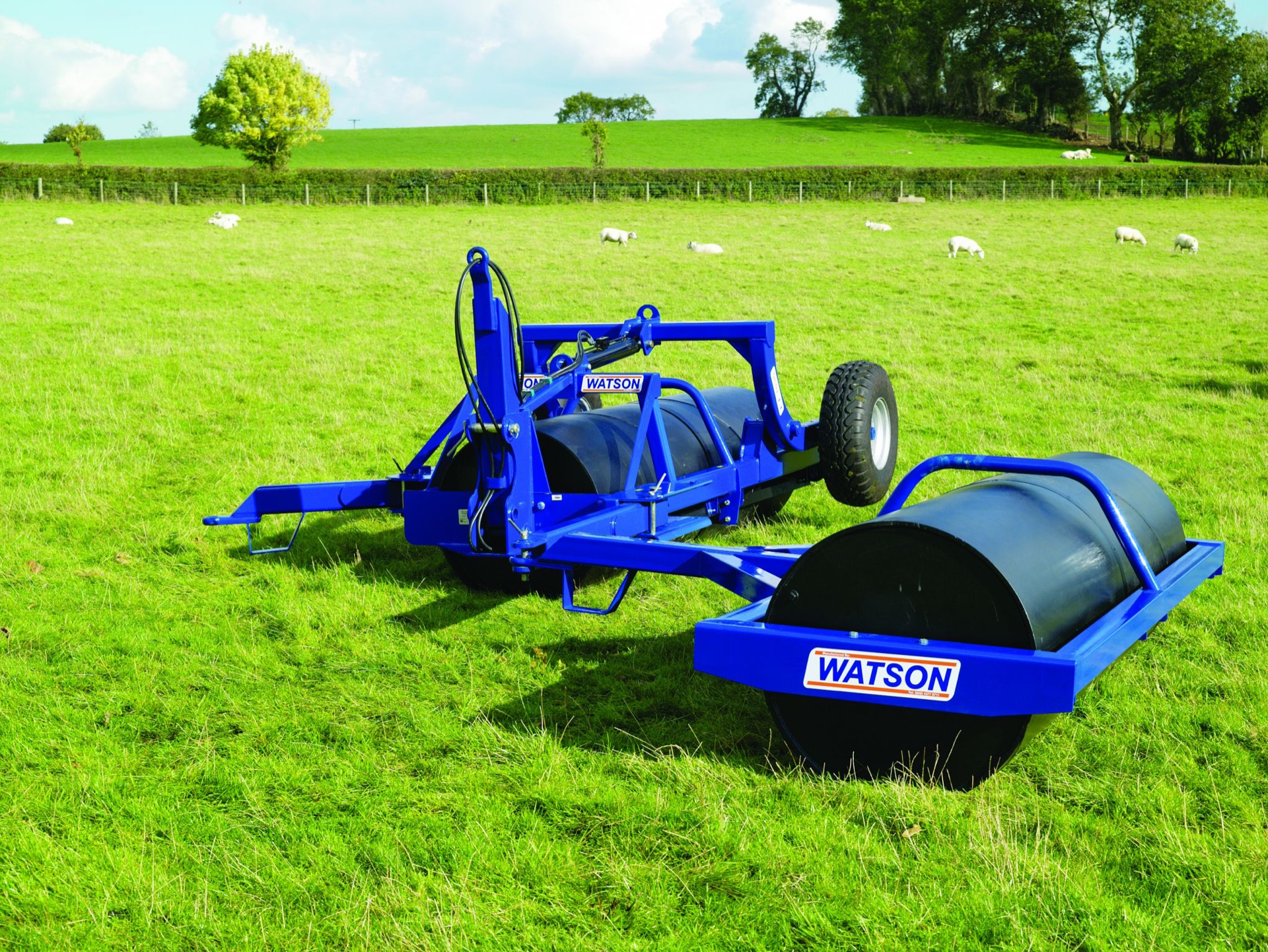

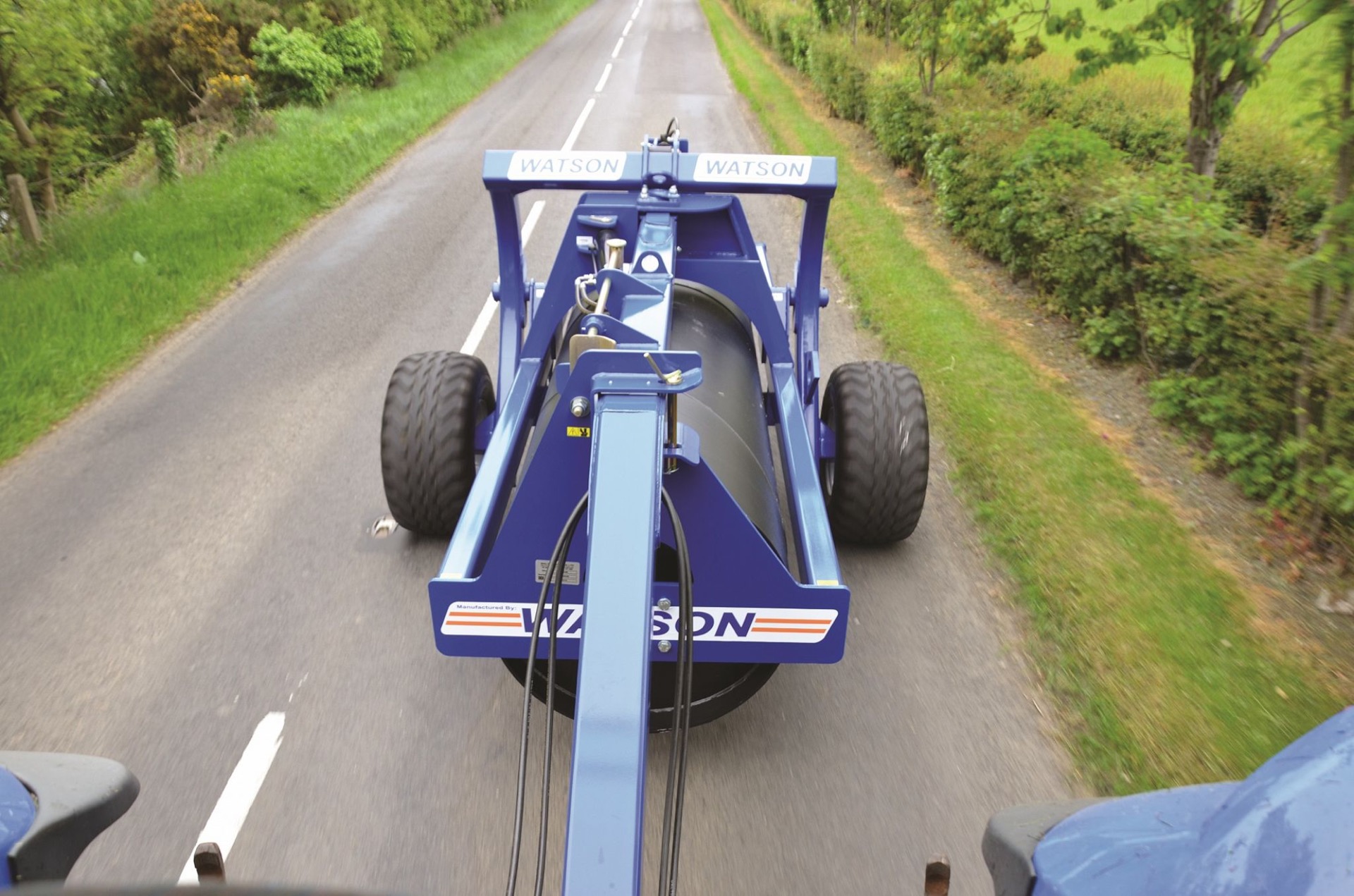

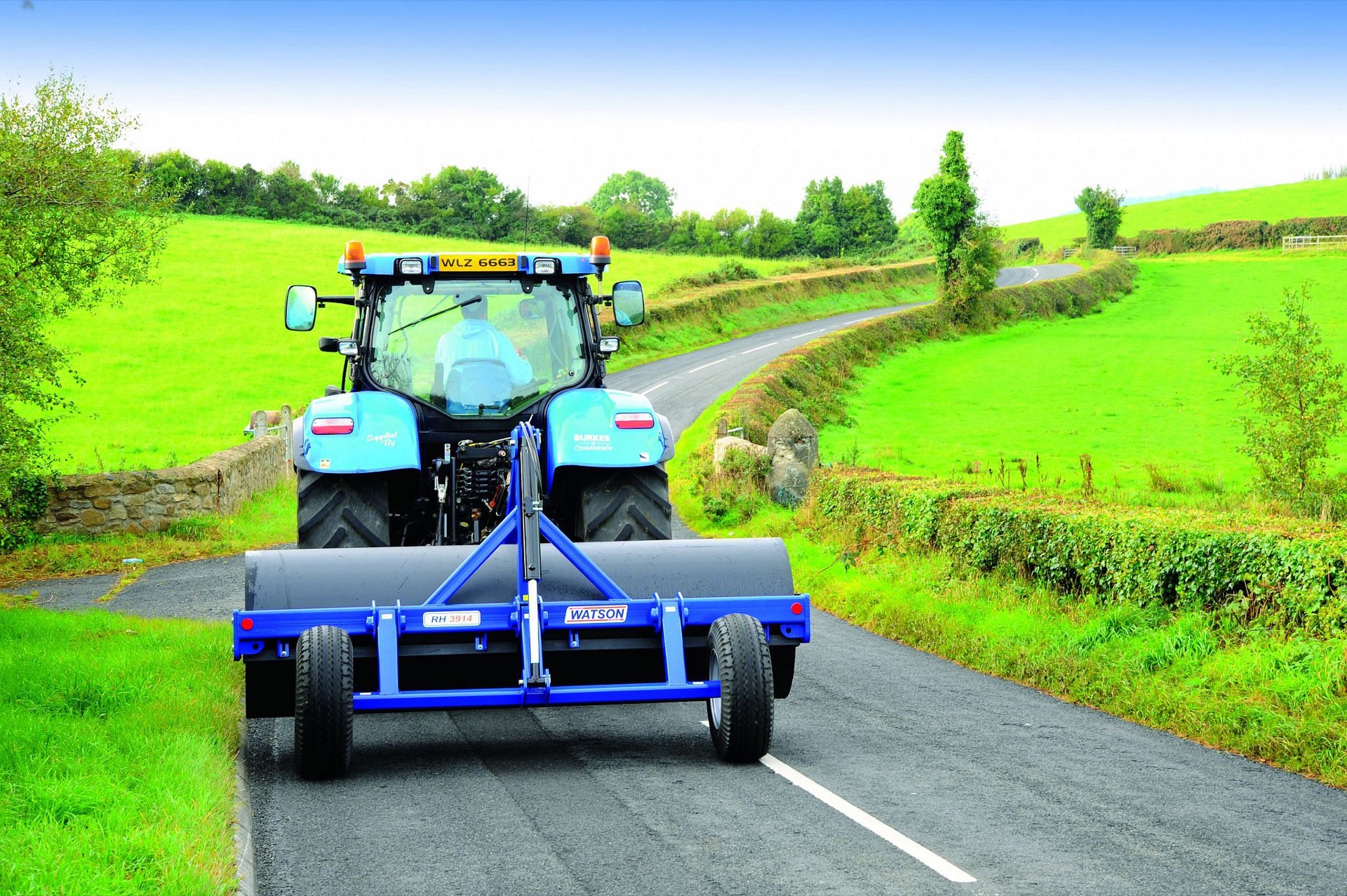

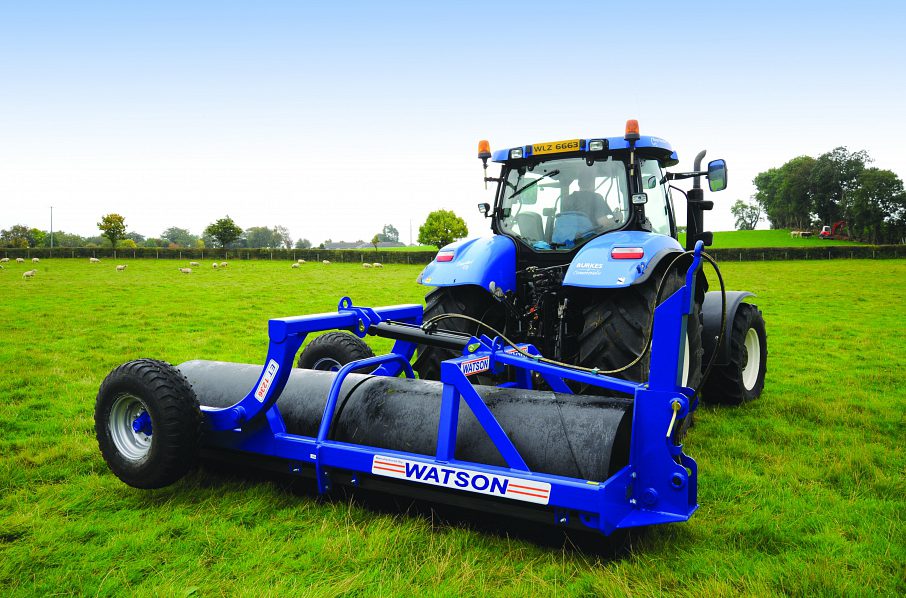

The drawbar is rotated through 90° from transport to rolling position without having to leave your tractor seat. The rotation operation is achieved by activating two hydraulic cylinders which in turn activate an innovative locking system.
Model: RET 1236
Roller Size: 12′ x 36″ x 14mm
Unladen: 2800 kg
Laden: 5050 kg
Volume: 2250 litres
Wheel size: 400 x 60 x 15.5
- Rolling width – 12ft
- Transport width – 2.45m
- Barrel diameter – 36″
- Barrel thickness – 14mm

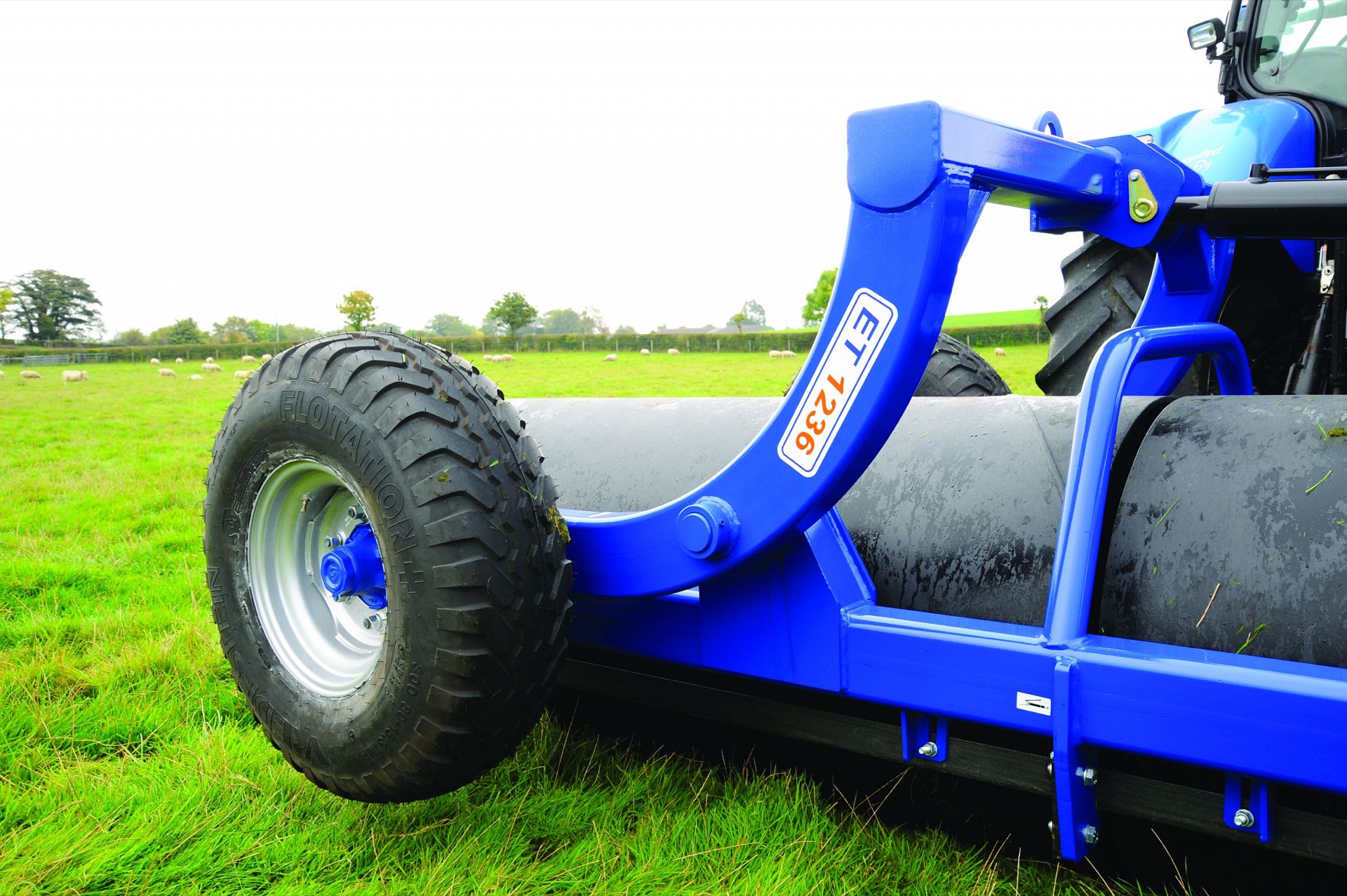

- Centre pivoting drawbar
- Automatic locking mechanism

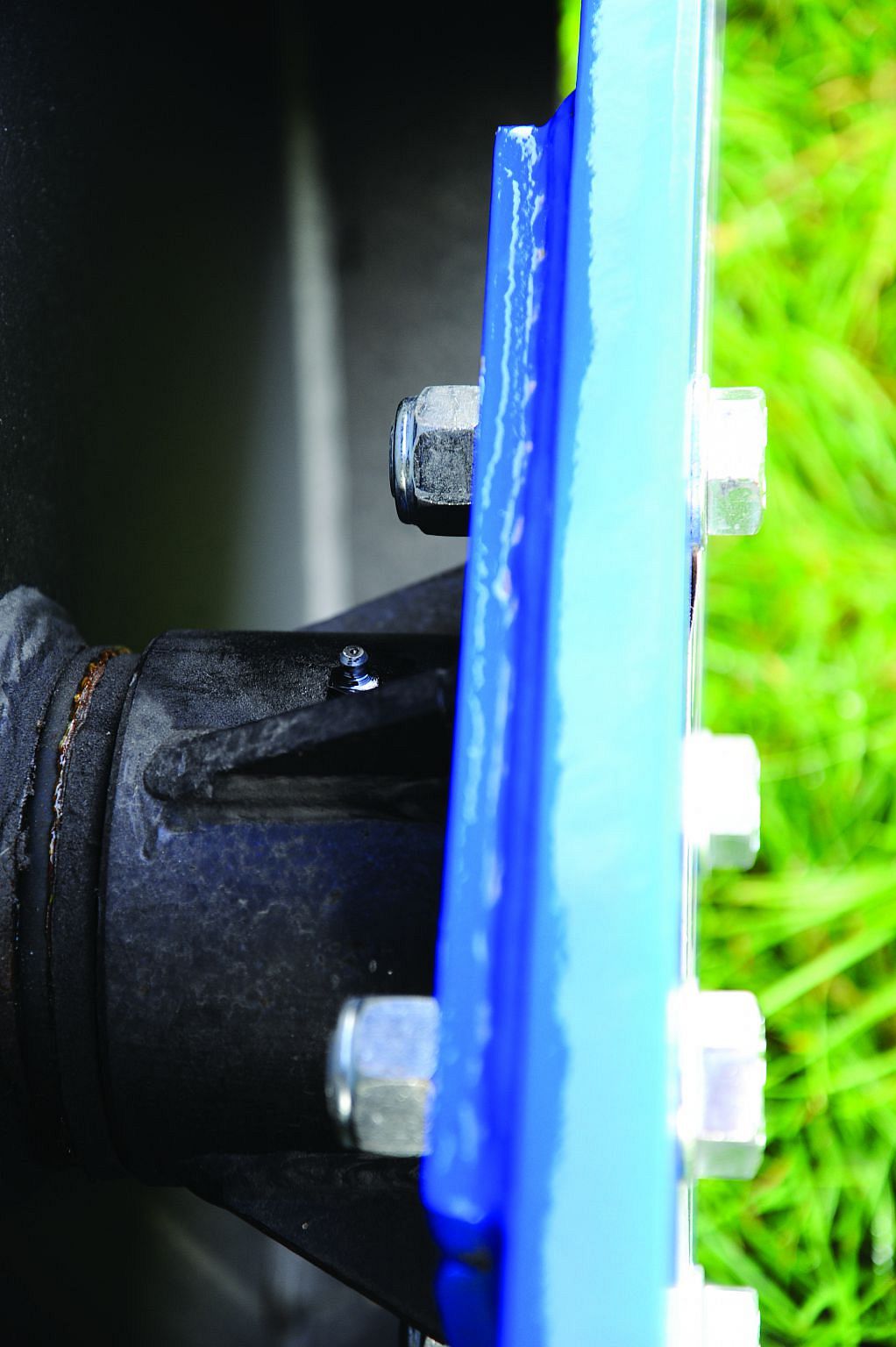

- Axle – 3″ sold shaft (EN8)
- Nylon bush bearings as standard

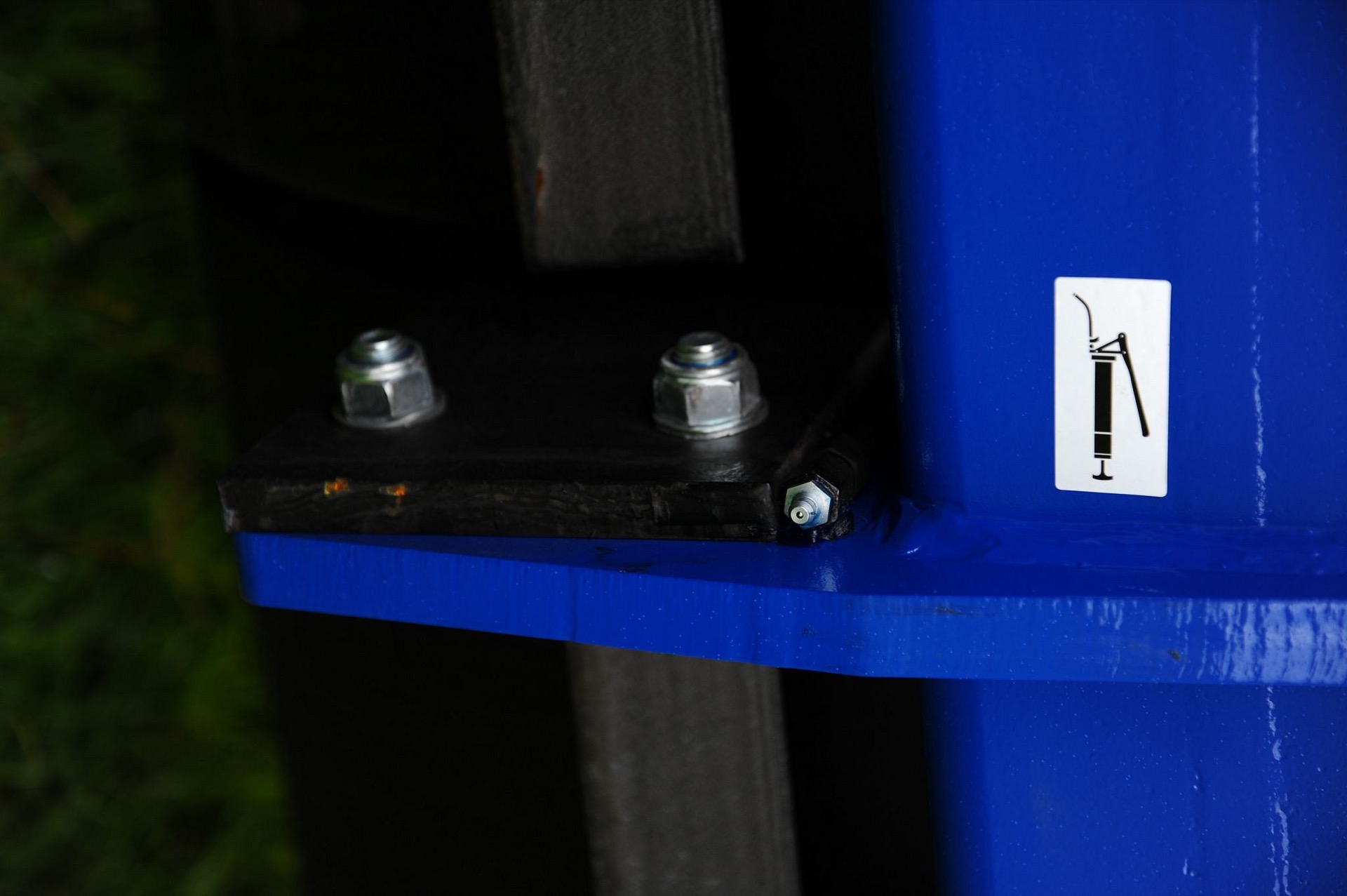

- Centre support c/w greasable nylon brush

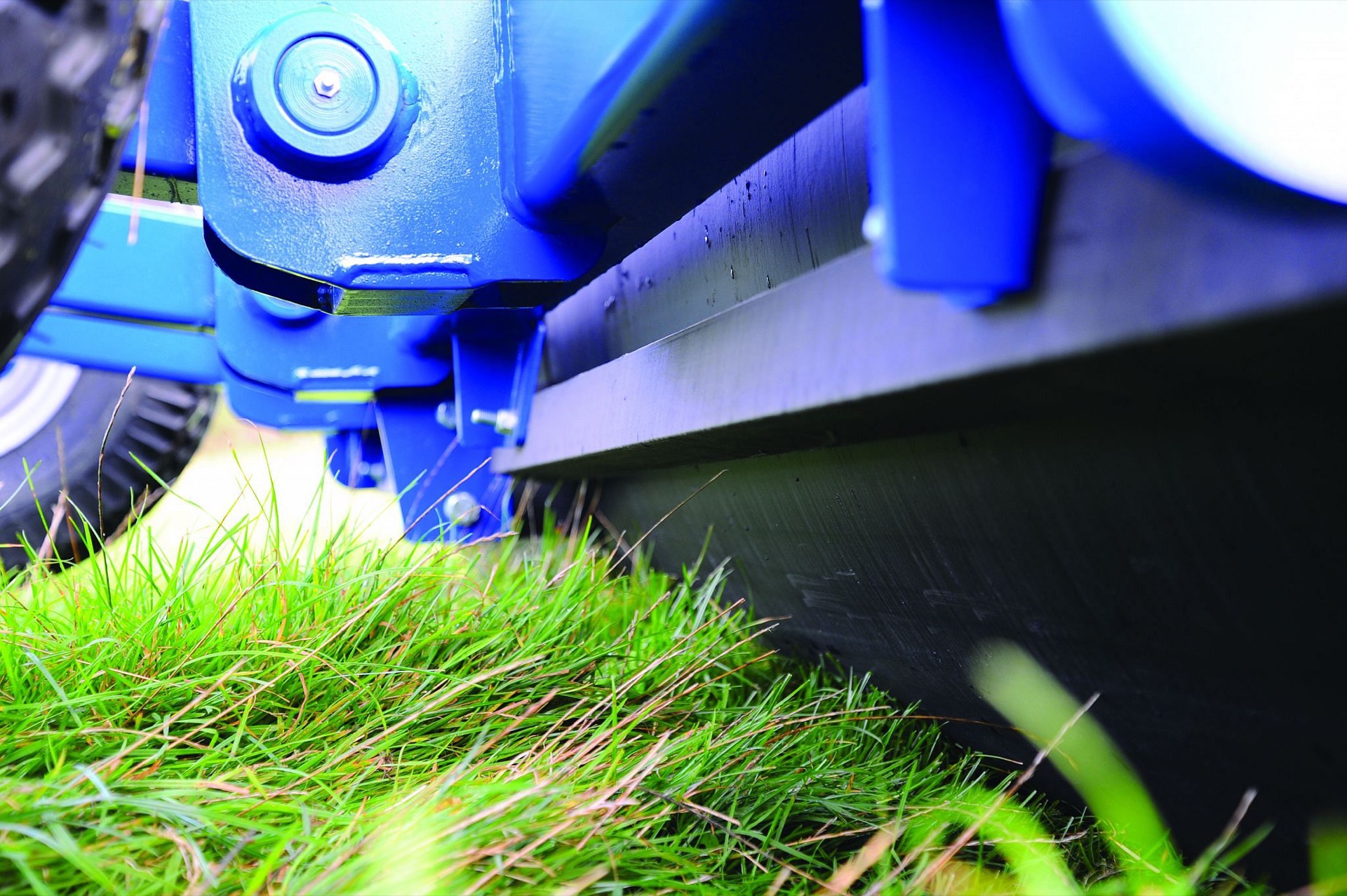

- Scraper as standard
- 6 stud heavy duty axle
- 2 x double acting hydraulic cylinders
- Adjustable heavy duty ring hitch
- High quality two pack paint finish
For more details on this rotating end tow roller
please call us now on 01548 521 429
