NC Trailers – Low Loader Trailers

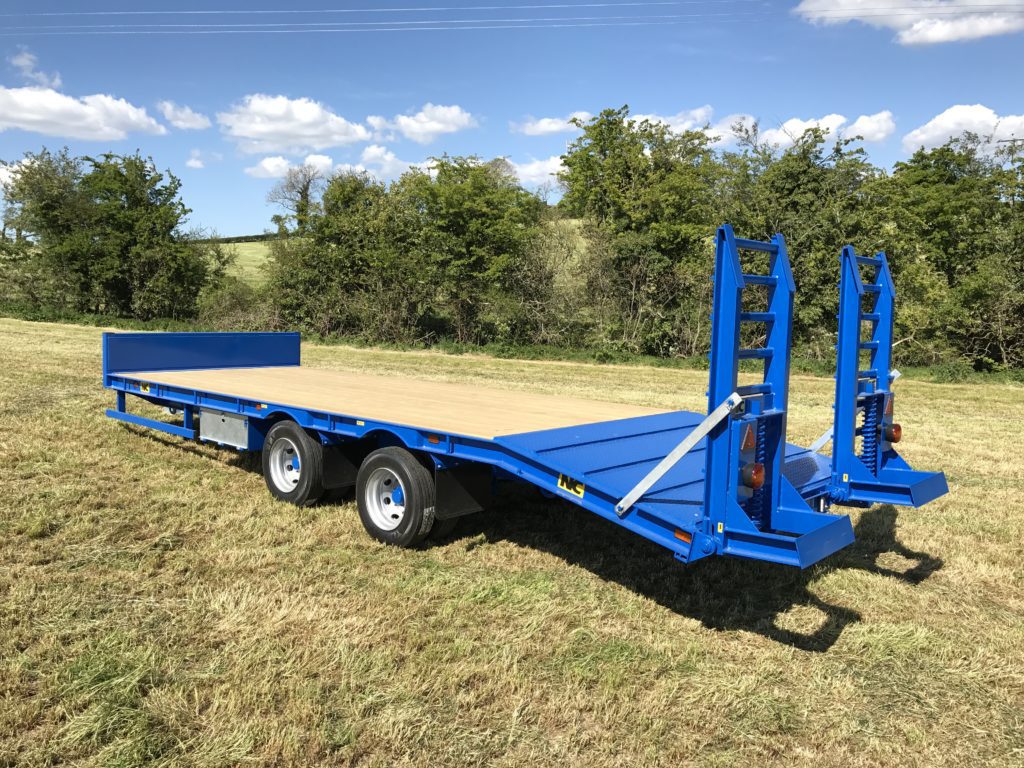

All 16, 22, and 25 Ton models from NC feature a standard height-adjustable, sprung drawbar. The flatbed floor is equipped with 50mm softwood timber throughout its length, while the beaver tail is constructed with durable steel chequer plate for added resilience. Welded grip bars on the beaver tail enhance traction for tracked machines. For easy loading, standard ramps measuring 700mm (2’4” wide) are provided, allowing narrow machines to be loaded onto a standard trailer. The ramps are spring-assisted for smooth raising and lowering.

NC Agricultural’s low loaders, designed for tractor towing, employ two or three 8-stud 90mm axles rated to 40kph, equipped with 215/75×17.5 twin tires. The 16 and 22 Ton models utilize 80mm springs, while the 25 Ton model features 100mm springs. The underslung suspension ensures good ground clearance while maintaining a low bed height. Hydraulic brakes, with 25mm brake rams and sprung release, come standard.
