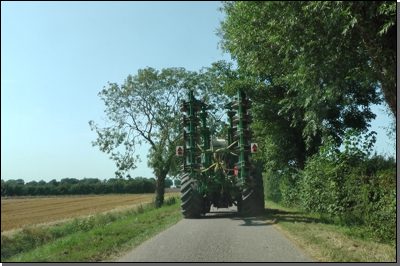

Cousins of Emneth – V-Form Soil Looseners

Options:

Medium Duty V-Form:

• Cat 2 linkage, 150x100mm toolbar with shearbolt protection
• 150x25mm legs, choice of crumbler, toothed packer, or solid coil
• 450mm depth wheels, maximum working depth of 350mm (14″)
• Options: No wheels, no rear attachment, disc assemblies
• Working widths: 7’5″ (2.25m), 9′ (2.75m), 10’8″ (3.25m)

Heavy Duty Rigid V-Form:

• Cat 2 & 3 linkage, 200x100mm toolbar with 200x25mm legs
• 610mm (24″) diameter depth wheels, maximum working depth of 510mm (20″)
• Choice of crumbler, toothed packer, solid coil, or razor rings
• Options: No wheels, no rear attachment, disc assemblies
• Working widths: 7’5″ (2.25m), 9′ (2.75m), 10’8″ (3.25m), 12’4″ (3.75m), 13’11” (4.25m)

Heavy Duty Trailed Rigid V-Form:

• 17″ depth/transport wheels, drawbar, rear attachments
• Working widths: 10’8″ (3.25m), 12’4″ (3.75m), 13’11” (4.25m)

Folding V-Form – Linkage Mounted:

• Compact 2.8m transport width, choice of 24″ crumbler, toothed packer, solid coil, or 650mm razor rings
• Working widths: 4.5m, 5.0m, 5.5m

Fully Trailed Folding V-Form:

• Fully trailed, 3m transport width, choice of toothed packer or 650mm razor rings
• Working widths: 5.5m, 6.5m, 7.5m
