ARPAL Petrol / Diesel Branch Loggers

Arpal branch loggers, powered by onboard petrol or diesel engines, provide exceptional flexibility and portability. Ideal for on-site deployment in areas where larger machines may not be suitable, these engine-driven branch loggers offer a reliable and efficient solution for quickly transforming branches into valuable firewood. Additionally, they can be used to mass reduce branches, creating sustainable habitats and wildlife refuges, unlike woodchip with limited value or utility. These loggers are a versatile and eco-friendly choice for managing branches effectively.

The Arpal Branch logger range is unique in offering a 3-year warranty, giving peace of mind and confidence in the product.

Options:

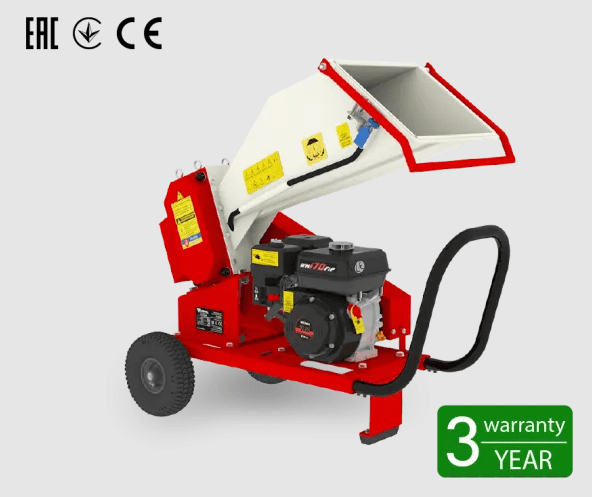

AM-60BD MAX: Drive Type – Petrol, Productivity – 2m³/h, Branch Diameter – 60mm, Engine Power – 7hp

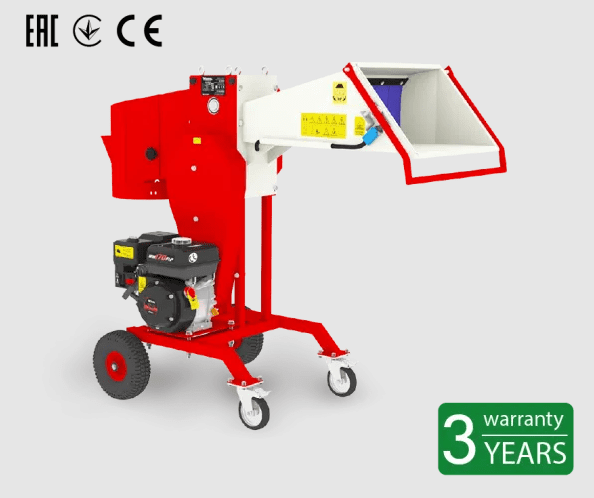

AM-80BD MAX: Drive Type – Petrol, Productivity – 4m³/h, Branch Diameter – 80mm, Engine Power – 7hp
AM-80BD-M: Drive Type – Petrol, Productivity – 4m³/h, Branch Diameter – 80mm, Engine Power – 7hp

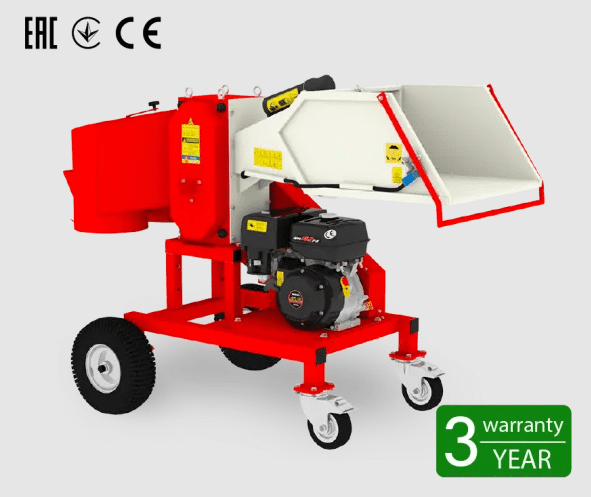

AM-120BD MAX: Drive Type – Petrol, Productivity – 6m³/h, Branch Diameter – 120mm, Engine Power – 16hp

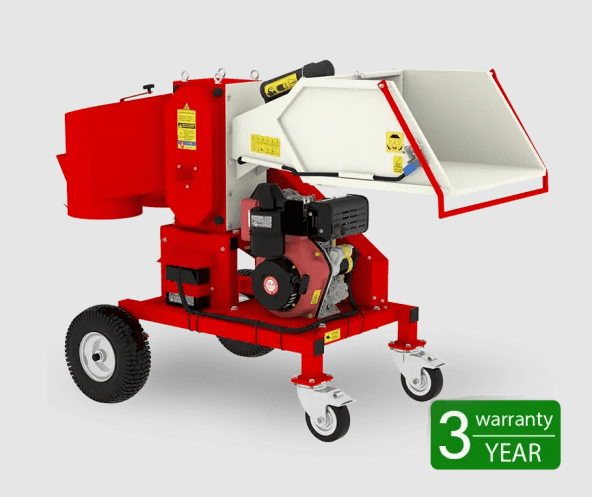

AM-120D MAX: Drive Type – Diesel, Productivity – 6m³/h, Branch Diameter – 120mm, Engine Power – 14hp

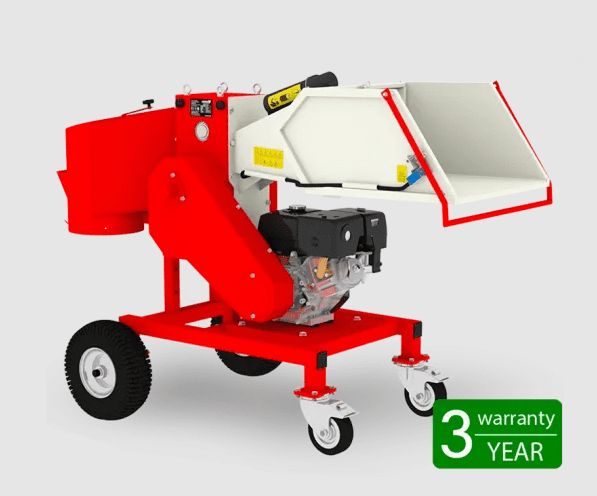

AM-120BD-R: Drive Type – Petrol, Productivity – 6m³/h, Branch Diameter – 120mm, Engine Power – 16hp

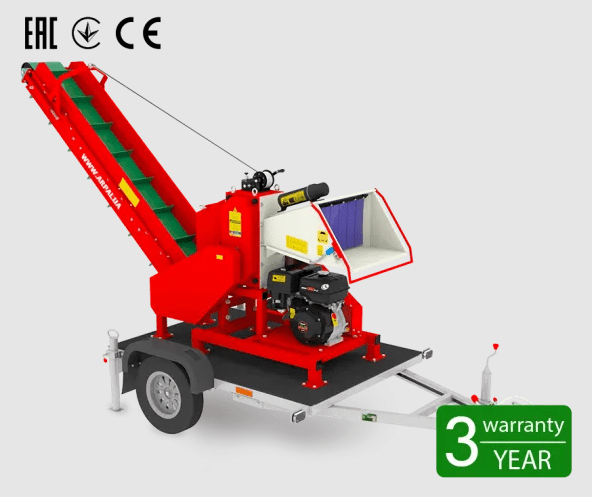

AM-120BD-K: Drive Type – Petrol, Productivity – 10m³/h, Branch Diameter – 120mm, Engine Power – 18hp

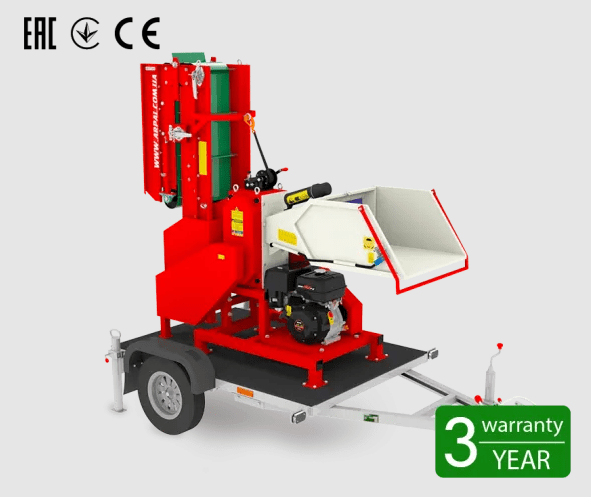

AM-120BD-K PRO: Drive Type – Petrol, Productivity – 10m³/h, Branch Diameter – 120mm, Engine Power – 18hp

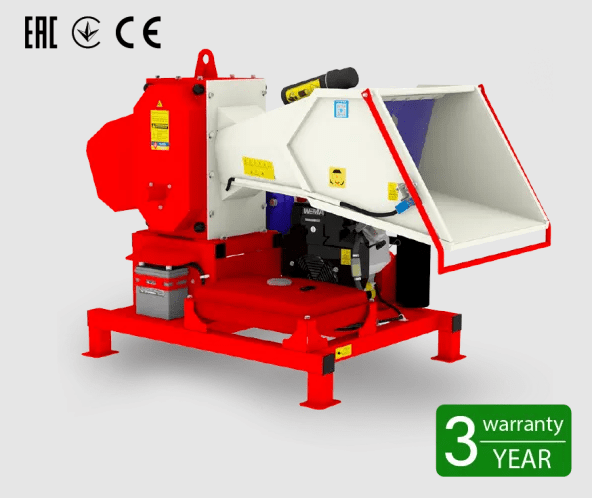

AM-160BD: Drive Type – Petrol, Productivity – 12m³/h, Branch Diameter – 160mm, Engine Power – 29hp

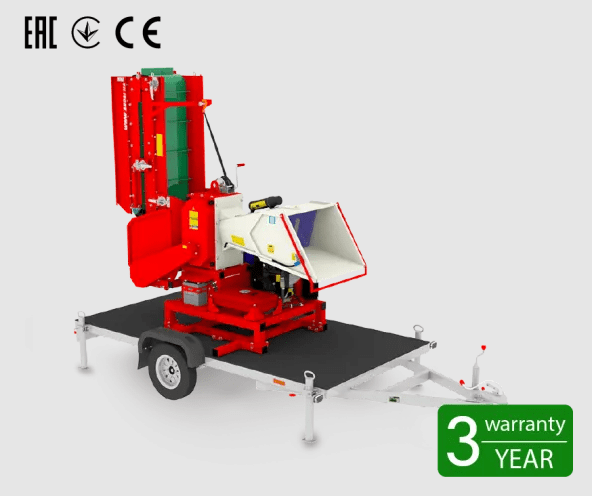

AM-160BD-K: Drive Type – Petrol, Productivity – 12m³/h, Branch Diameter – 160mm, Engine Power – 29hp

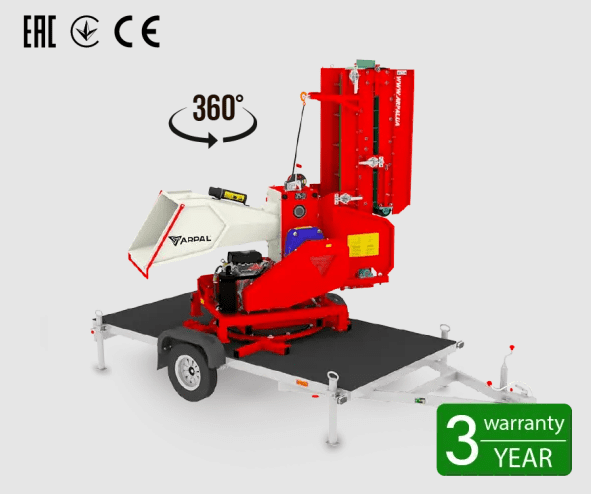

AM-160BD-K PRO: Drive Type – Petrol, Productivity – 12m³/h, Branch Diameter – 160mm, Engine Power – 29hp

The cutting head frame is constructed using structural pins instead of welding, ensuring enhanced rigidity and precision for increased reliability and strength.
Thicker sidewall and frame construction provides greater integrity.
The rotor shaft is thicker, contributing to increased strength and durability.
Each driven gear has its own clutch, preventing gear breakages and extending the machine’s lifespan.
The induction-hardened gear features a higher cutting power ratio than other suppliers.
Blades are ground on both planes, delivering cleaner cuts and prolonging blade life.
12.9 hardness cap head bolts secure the blades, resisting wear and eliminating movement due to wear.
Twin rotor shafts are milled to high tolerance, ensuring precise blade fits and efficient power transfer without stressing fixing bolts.
This design facilitates easier blade adjustment to their correct position (0.2mm) after sharpening.
The PTO shaft connection is induction hardened to prevent undue wear.
All Arpal branch loggers undergo a powder coating finish for durability and corrosion prevention, surpassing simple paint applications.
